Description
General part information
09456000692

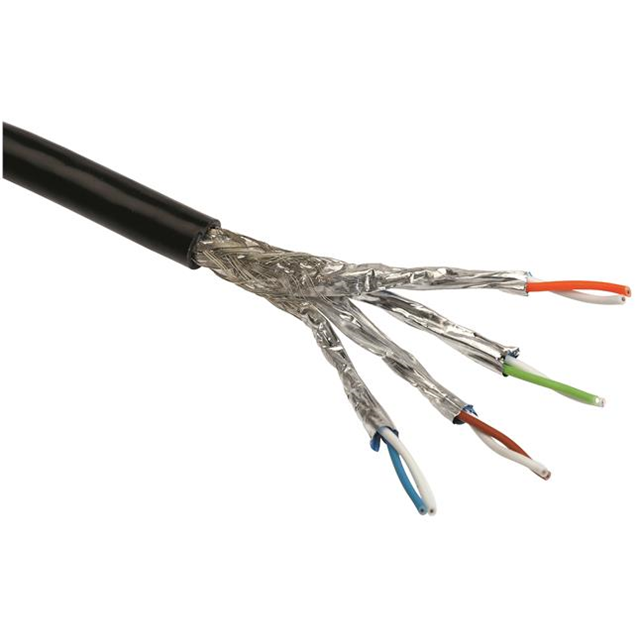

8 (4 Pair Twisted) Conductor Multi-Pair, Cat7 Cable Black 24 AWG Foil 328.1' (100.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 09456000692 |
|---|---|
| Cable Type | Multi-Pair, Cat7 |
| Conductor Arrangement | Twisted |
| Conductor Insulation | Polyethylene (PE) |
| Conductor Material | Tinned, Copper |
| Conductor Strand Count | 7 Strands |
| Conductor Strand Gauge | 24 AWG |
| Jacket (Insulation) Diameter | 0.347 in |
| Jacket Color | Black |
| Length | 328.1 ft |
| Number of Conductors | 8 |
| Number of Conductors - Pair | 4 |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Industrial Environments - IP65 |
| Wire Gauge | 24 AWG |
