OPAA1DF

Active

DIALIGHT

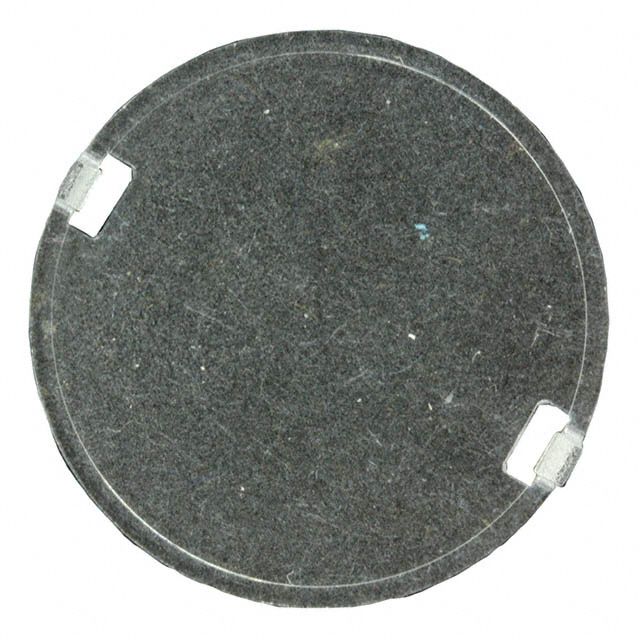

LENS CLR 10DEG DIFFUSER SNAP-IN

Search across all available documentation for this part.

Active

DIALIGHT

LENS CLR 10DEG DIFFUSER SNAP-IN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	OPAA1DF	OPAA1 Series

Color	Clear	Clear
For Use With/Related Manufacturer	Osram	Osram
Lens Size [diameter]	26 mm	26 mm
Lens Transparency	Diffused	Diffused
Material	Acrylic	Acrylic
Mounting Type	Snap-In	Snap-In
Number of LEDs	1	1
Optical Pattern	-	Elliptical/Oval, Wide
Type	Sub Lens, Lens	Sub Lens, Lens
Viewing Angle	10 °	10 - 30 °
Viewing Angle	-	8 °
Viewing Angle	-	54 °

LENS CLR 8X54DEG ELLIP/OVAL SNAP

Part	Viewing Angle [custom]	Viewing Angle [custom]	Number of LEDs	Type	Mounting Type	Lens Transparency	Color	Material	Lens Size [diameter]	For Use With/Related Manufacturer	Optical Pattern	Viewing Angle
DIALIGHT OPAA1OSL	8 °	54 °	1	Lens, Sub Lens	Snap-In	Diffused	Clear	Acrylic	26 mm	Osram	Elliptical/Oval
DIALIGHT OPAA1WSL			1	Lens, Sub Lens	Snap-In	Diffused	Clear	Acrylic	26 mm	Osram	Wide	30 °
DIALIGHT OPAA1DF			1	Lens, Sub Lens	Snap-In	Diffused	Clear	Acrylic	26 mm	Osram		10 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Lens, Sub Lens Clear 10° Diffuser Snap-In
