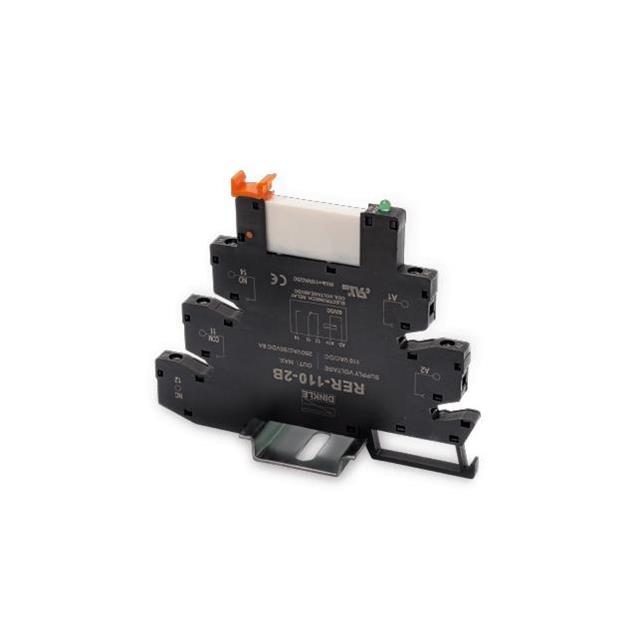

RER-110-2B

Active

Dinkle Corporation, USA

RELAY GEN PURPOSE SPDT 6A 60V

Search across all available documentation for this part.

Active

Dinkle Corporation, USA

RELAY GEN PURPOSE SPDT 6A 60V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RER-110-2B	RER-110 Series

Coil Current	3.4 mA	3.4 mA
Coil Resistance	32.353 kOhms	32.353 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	110 VAC/DC	110 VAC/DC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi)
Contact Rating (Current)	6 A	6 A
Features	Lighted Indicator, Surge Protection	Lighted Indicator, Surge Protection
Mounting Type	DIN Rail	DIN Rail
Operate Time	8 ms	8 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	4 ms	4 ms
Switching Voltage [Max]	30 VDC, 250 VAC	30 - 250 VDC
Termination Style	Screw Terminal	Screw Terminal, Spring Terminal

RELAY GEN PURPOSE SPDT 6A 60V

Part	Features	Coil Type	Termination Style	Coil Voltage	Switching Voltage [Max]	Contact Rating (Current)	Contact Form	Coil Resistance	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Relay Type	Contact Material	Release Time	Operate Time
Dinkle Corporation, USA RER-110-2B	Lighted Indicator, Surge Protection	Non Latching	Screw Terminal	110 VAC/DC	30 VDC, 250 VAC	6 A	SPDT (1 Form C)	32.353 kOhms	DIN Rail	85 °C	-40 °C	3.4 mA	General Purpose	Silver Nickel (AgNi)	4 ms	8 ms
Dinkle Corporation, USA RER-110-5B	Lighted Indicator, Surge Protection	Non Latching	Spring Terminal	110 VAC/DC	30 VDC, 250 VAC	6 A	SPDT (1 Form C)	32.353 kOhms	DIN Rail	85 °C	-40 °C	3.4 mA	General Purpose	Silver Nickel (AgNi)	4 ms	8 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 110VAC/DC Coil DIN Rail
