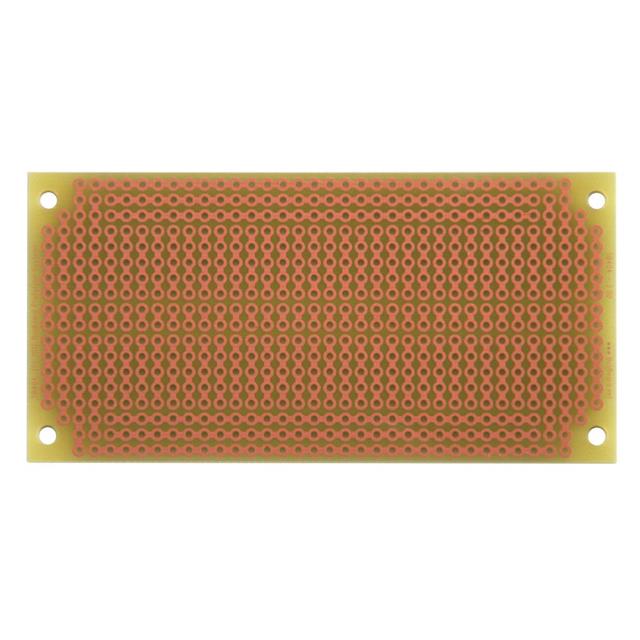

Specification	SB404

Board Thickness	0.063 in, 0.031 in, 0.062 in
Circuit Pattern	Hole Pad (Single Side), Hole Pad (Both Sides)
Circuit Pattern Hole Count	5, 5
Hole Diameter	0.042 in
Material	FR4 Epoxy Glass
Pitch	0.1 in
Pitch (Grid)	0.1 in
Plating	Non-Plated Through Hole (NPTH), Plated Through Hole (PTH)
Proto Board Type	General Purpose, Breadboard
Size / Dimension Length	3.31 in
Size / Dimension Width	2.1 in
