2001-1208
ActiveWAGO Corporation

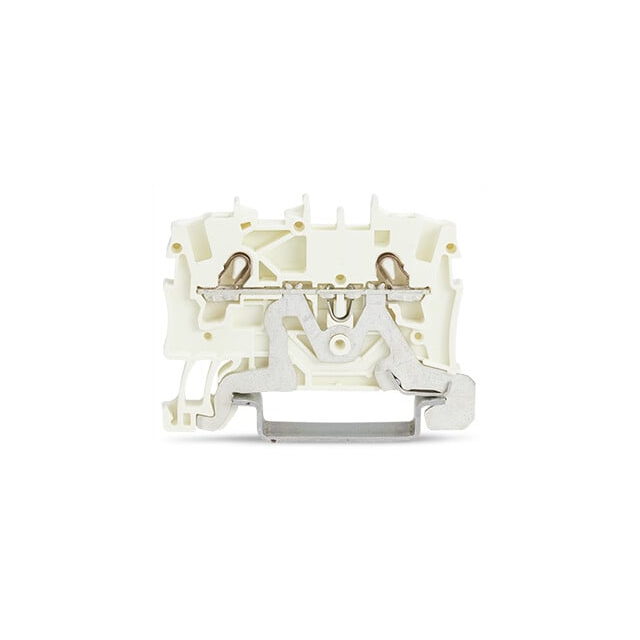

2-CONDUCTOR SHIELD TERMINAL BLOCK
2001-1208
ActiveWAGO Corporation
2-CONDUCTOR SHIELD TERMINAL BLOCK
Description
General part information
2001-1208
Terminal Block Connector 2 Position Ground, Earth White 14-22 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 2001-1208 |
|---|---|
| Color | White |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length (Max) | 11 mm |
| Stripping Length (Min) | 9 mm |
| Terminal Width | 4.2 mm |
| Termination Style | Push In, Spring |
| Type | Earth, Ground |
| Wire Gauge or Range - AWG (Max) | 22 AWG |
| Wire Gauge or Range - AWG (Min) | 14 AWG |
| Wire Gauge or Range - mm² (Maximum) | 2.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.25 mm² |
