MNU14-187DMIX-BOTTLE

Active

CONN QC TAB 14-16AWG 0.187 100PC

Search across all available documentation for this part.

Active

CONN QC TAB 14-16AWG 0.187 100PC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MNU14-187DMIX-BOTTLE	MNU14 Series

Color	Blue	Blue
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper, Brass
Diameter - Barrel	-	3.96 mm
Diameter - Barrel	-	0.156 in
Features	Butted Seam	Butted Seam
Gender	Male	Male, Female
Insulation	Fully Insulated	Fully Insulated
Insulation Diameter	3.68 mm	3.68 mm
Insulation Diameter [diameter]	0.145 "	0.145 "
Length - Overall [x]	22.1 mm	20.57 - 25.91 mm
Length - Overall [x]	0.87 in	0.81 - 1.02 in
Material - Insulation	-	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tab Thickness	0.02 "	0.02 - 0.032 in
Tab Thickness	0.51 mm	0.51 - 0.81 mm
Tab Width	4.75 mm	4.75 - 6.35 mm
Tab Width	0.187 in	0.187 - 0.25 in
Terminal Type	Standard	Standard, Female, Receptacle (Socket)
Termination	Crimp	Crimp

CONN QC TAB 14-16AWG 0.250 CRIMP

Part	Gender	Tab Width	Tab Width	Contact Finish	Color	Contact Material	Tab Thickness	Tab Thickness	Insulation	Length - Overall [x]	Length - Overall [x]	Termination	Mounting Type	Terminal Type	Features	Material - Insulation	Insulation Diameter	Insulation Diameter [diameter]	Diameter - Barrel [diameter]	Diameter - Barrel [diameter]
3M MNU14-250DMIX-BOTTLE	Male	6.35 mm	0.25 in	Tin	Blue	Copper, ETP	0.032 in	0.81 mm	Fully Insulated	24.13 mm	0.95 in	Crimp	Free Hanging (In-Line)	Standard	Butted Seam
3M MNU14-180DFIK-A				Tin	Blue	Brass			Fully Insulated	25.91 mm	1.02 in	Crimp		Female, Receptacle (Socket)	Butted Seam	Nylon, Polyamide (PA)	3.68 mm	0.145 "
3M MNU14-156DFIK				Tin	Blue	Brass			Fully Insulated	25.91 mm	1.02 in	Crimp		Female, Receptacle (Socket)		Nylon, Polyamide (PA)			3.96 mm	0.156 in
3M MNU14-250DFIK	Female	6.35 mm	0.25 in	Tin	Blue	Brass	0.032 in	0.81 mm	Fully Insulated	22.1 mm	0.87 in	Crimp	Free Hanging (In-Line)	Standard	Butted Seam		3.68 mm	0.145 "
3M MNU14-187DMIX-BOTTLE	Male	4.75 mm	0.187 in	Tin	Blue	Copper, ETP	0.02 "	0.51 mm	Fully Insulated	22.1 mm	0.87 in	Crimp	Free Hanging (In-Line)	Standard	Butted Seam		3.68 mm	0.145 "
3M MNU14-187DFIK	Female	4.75 mm	0.187 in	Tin	Blue	Brass	0.02 "	0.51 mm	Fully Insulated	20.57 mm	0.81 in	Crimp	Free Hanging (In-Line)	Standard	Butted Seam		3.68 mm	0.145 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 109.54

General part information

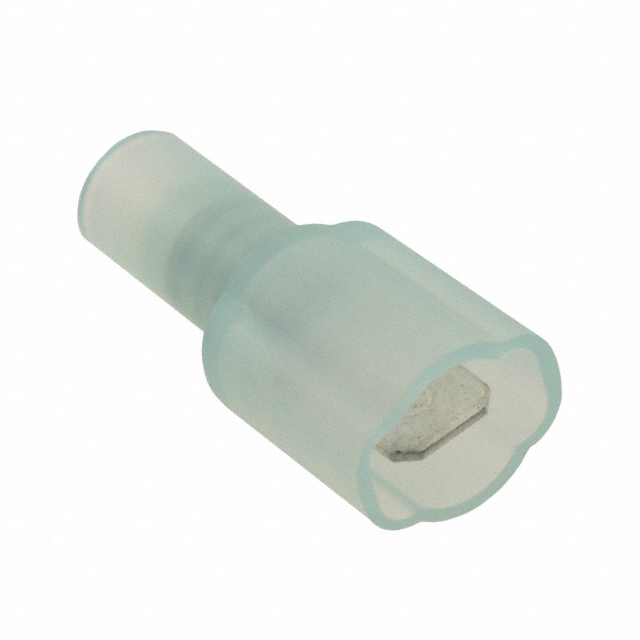

0.187" (4.75mm) Quick Connect Male 14-16 AWG Crimp Connector Fully Insulated
