XL25D-TO3P-25-20-1

Active

t-Global Technology

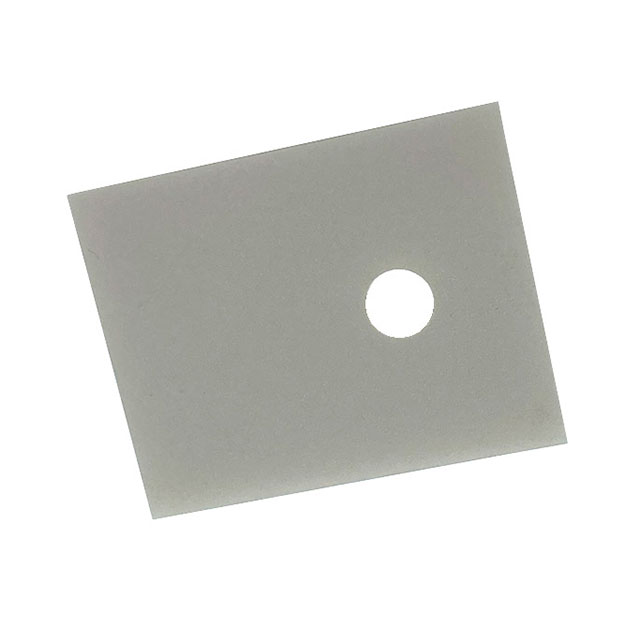

CERAMIC HEAT SPREADER 25X20X1MM

Search across all available documentation for this part.

Active

t-Global Technology

CERAMIC HEAT SPREADER 25X20X1MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-3P Ceramic Heat Spreader

Technical documentation and resources

Parameters and characteristics commom to parts in this series

CERAMIC HEAT SPREADER 20X14X0.63

Part	Material	Shelf Life	Width	Width	Length [x]	Length [x]	Shape	Type	Package Cooled	Attachment Method	Length	Length	Width [y]	Width [y]	Fin Height [z]	Fin Height [z]	Width [x]	Width [x]
t-Global Technology XL25D-TO220-20-14-0.64	Ceramic	60 Months	0.551 in	14 mm	0.787 "	20 mm	Rectangular	Heat Spreader	TO-220	Thermal Tape
t-Global Technology XL25D-TO3P-25-20-0.64	Ceramic	60 Months					Rectangular	Heat Spreader	TO-3P	Thermal Tape	25 mm	0.984 in	20 mm	0.787 in
t-Global Technology XL25D-TO264-28-22-1	Ceramic	60 Months					Rectangular	Heat Spreader	TO-264	Thermal Tape	28 mm	1.102 in			0.039 in	1 mm	22 mm	0.866 "
t-Global Technology XL25D-TO247-22-17-1	Ceramic	60 Months					Rectangular	Heat Spreader	TO-247	Thermal Tape	22 mm	0.866 "			0.039 in	1 mm	17 mm	0.669 in
t-Global Technology XL25D-TO264-28-22-0.64	Ceramic	60 Months					Rectangular	Heat Spreader	TO-264	Thermal Tape	28 mm	1.102 in					22 mm	0.866 "
t-Global Technology XL25D-TO3P-25-20-1	Ceramic	60 Months					Rectangular	Heat Spreader	TO-3P	Thermal Tape	25 mm	0.984 in	20 mm	0.787 in	0.039 in	1 mm
t-Global Technology XL25D-TO247-22-17-0.64	Ceramic	60 Months					Rectangular	Heat Spreader	TO-247	Thermal Tape	22 mm	0.866 "					17 mm	0.669 in
t-Global Technology XL25D-TO220-20-14-1	Ceramic		0.551 in	14 mm	0.787 "	20 mm	Rectangular	Heat Spreader	TO-220	Thermal Tape					0.039 in	1 mm
t-Global Technology XL25D-TO220-18.5-12-1	Ceramic				0.787 "	20 mm	Rectangular	Heat Spreader	TO-220	Thermal Tape					0.039 in	1 mm	18.5 mm	0.728 "
