WMF4W1P25K-F
ActiveCornell Dubilier Knowles

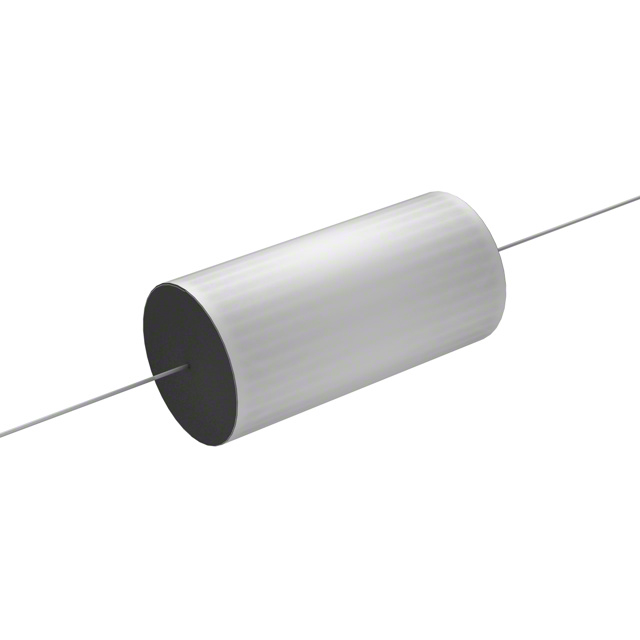

CAP FILM 1.25UF 10% 400VDC AXIAL
WMF4W1P25K-F
ActiveCornell Dubilier Knowles
CAP FILM 1.25UF 10% 400VDC AXIAL
Description
General part information
WMF4W1P25K-F
1.25 µF Film Capacitor 400V Polyester Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | WMF4W1P25K-F |
|---|---|
| Applications | General Purpose |
| Capacitance | 1.25 µF |
| Dielectric Material | Polyester |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Size / Dimension Diameter | 0.988 in |
| Size / Dimension Length | 2 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - DC | 400 V |
