RCL061215K0JNEA
ActiveVishay Dale
RES 15K OHM 5% 1W 1206 WIDE
RCL061215K0JNEA
ActiveVishay Dale
RES 15K OHM 5% 1W 1206 WIDE
Description
General part information
RCL061215K0JNEA

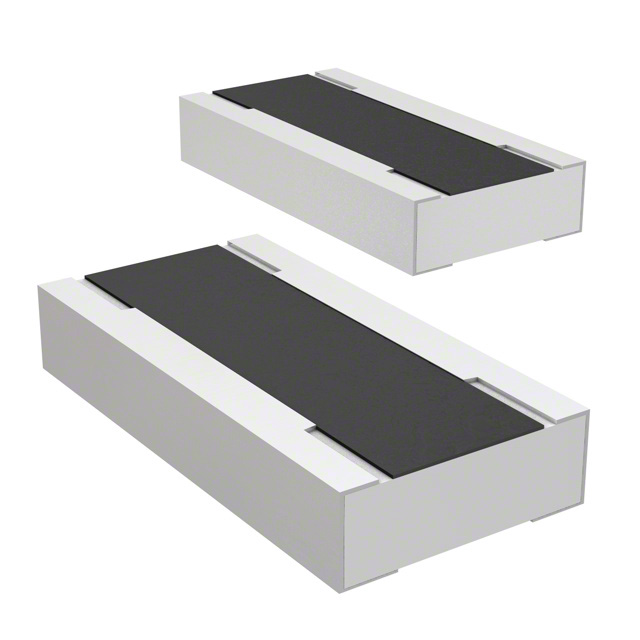

15 kOhms ±5% 1W Chip Resistor Wide 1206 (3216 Metric), 0612 Automotive AEC-Q200 Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | RCL061215K0JNEA |
|---|---|
| Composition | Thick Film |
| Features | Automotive AEC-Q200 |
| Height - Seated (Max) | 0.026 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0612, Wide 1206 (3216 Metric) |
| Package Name | 0612 |
| Power (Watts) | 1 W |
| Ratings | AEC-Q200 |
| Resistance | 15 kOhm |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.126 in |
| Supplier Device Package | 0612 |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
