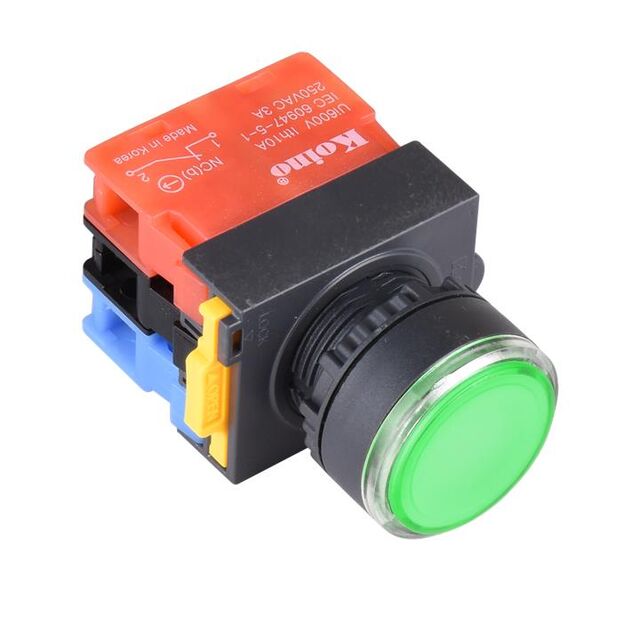

NS22-BA-L3CG1A1B
Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | NS22-BA-L3CG1A1B |
|---|---|
| Actuator Type | Round, Flush, Button |
| Circuit | DPST-NO/NC |
| Color | Green |
| Color - Actuator/Cap | Green |
| Current Rating | 3 A, 270 mA |
| Electrical Life (Cycles) | 500000 |
| Illumination Type | LED |
| Illumination Voltage (Nominal) | 24 V |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 22.3 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Off, Off-On |
| Termination Style | Screw Terminal |
| Type | Standard, Illuminated |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 250 VDC |
