8505 003100

Active

Belden Inc.

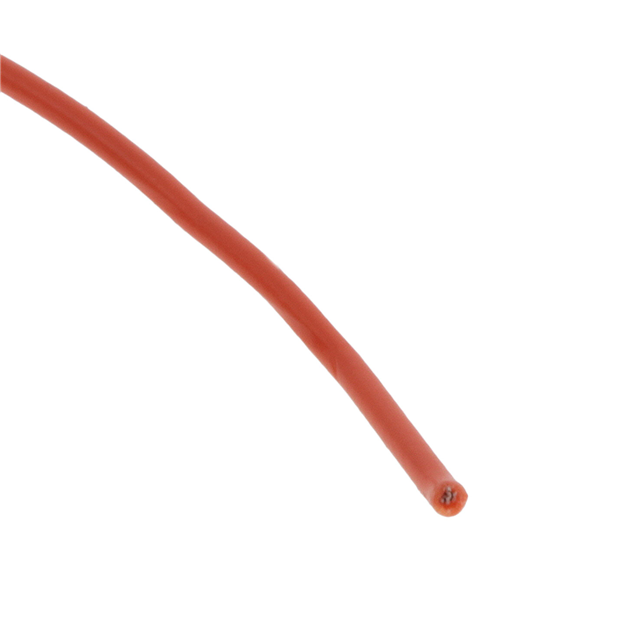

HOOK-UP STRND 26AWG ORANGE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCabling Solutions for Industrial Applications Datasheet

8505 003100

Active

Belden Inc.

HOOK-UP STRND 26AWG ORANGE

Deep-Dive with AI

DocumentsCabling Solutions for Industrial Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8505 003100

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand	7 Strands, 34 AWG
Jacket (Insulation) Diameter [diameter]	0.039 in
Jacket (Insulation) Diameter [diameter]	0.99 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.25 mm
Jacket (Insulation) Thickness	0.01 in
Jacket Color	Orange
Length [x]	30.5 m
Length [x]	100 ft
Qualification	MIL-W-16878/1 Type B
Voltage	600 V
Wire Gauge	26 AWG

8505 Series

Part	Conductor Strand	Voltage	Length [x]	Length [x]	Jacket Color	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Qualification	Length	Length
Belden Inc. 8505 008100	7 Strands 34 AWG	600 V	30.5 m	100 ft	Gray	26 AWG	0.25 mm	0.01 in	Poly-Vinyl Chloride (PVC)	Hook-Up	0.039 in	0.99 mm	Copper Tinned	MIL-W-16878/1 Type B
Belden Inc. 8505 004100	7 Strands 34 AWG	600 V	30.5 m	100 ft	Yellow	26 AWG	0.25 mm	0.01 in	Poly-Vinyl Chloride (PVC)	Hook-Up	0.039 in	0.99 mm	Copper Tinned	MIL-W-16878/1 Type B
Belden Inc. 8505 0041000	7 Strands 34 AWG	600 V			Yellow	26 AWG	0.25 mm	0.01 in	Poly-Vinyl Chloride (PVC)	Hook-Up	0.039 in	0.99 mm	Copper Tinned	MIL-W-16878/1 Type B	1000 ft	304.8 m
Belden Inc. 8505 0031000	7 Strands 34 AWG	600 V			Orange	26 AWG	0.25 mm	0.01 in	Poly-Vinyl Chloride (PVC)	Hook-Up	0.039 in	0.99 mm	Copper Tinned	MIL-W-16878/1 Type B	1000 ft	304.8 m
Belden Inc. 8505 003100	7 Strands 34 AWG	600 V	30.5 m	100 ft	Orange	26 AWG	0.25 mm	0.01 in	Poly-Vinyl Chloride (PVC)	Hook-Up	0.039 in	0.99 mm	Copper Tinned	MIL-W-16878/1 Type B
Belden Inc. 8505 005100	7 Strands 34 AWG	600 V	30.5 m	100 ft	Green	26 AWG	0.25 mm	0.01 in	Poly-Vinyl Chloride (PVC)	Hook-Up	0.039 in	0.99 mm	Copper Tinned	MIL-W-16878/1 Type B
Belden Inc. 8505 0021000	7 Strands 34 AWG	600 V			Red	26 AWG	0.25 mm	0.01 in	Poly-Vinyl Chloride (PVC)	Hook-Up	0.039 in	0.99 mm	Copper Tinned	MIL-W-16878/1 Type B	1000 ft	304.8 m
Belden Inc. 8505 0011000	7 Strands 34 AWG	600 V			Brown	26 AWG	0.25 mm	0.01 in	Poly-Vinyl Chloride (PVC)	Hook-Up	0.039 in	0.99 mm	Copper Tinned	MIL-W-16878/1 Type B	1000 ft	304.8 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 1.09

Description

General part information

8505 Series

26 AWG Hook-Up Wire 7/34 Orange 600V 100.0' (30.5m)

Documents

Technical documentation and resources

Cabling Solutions for Industrial Applications

Datasheet
