Description
General part information

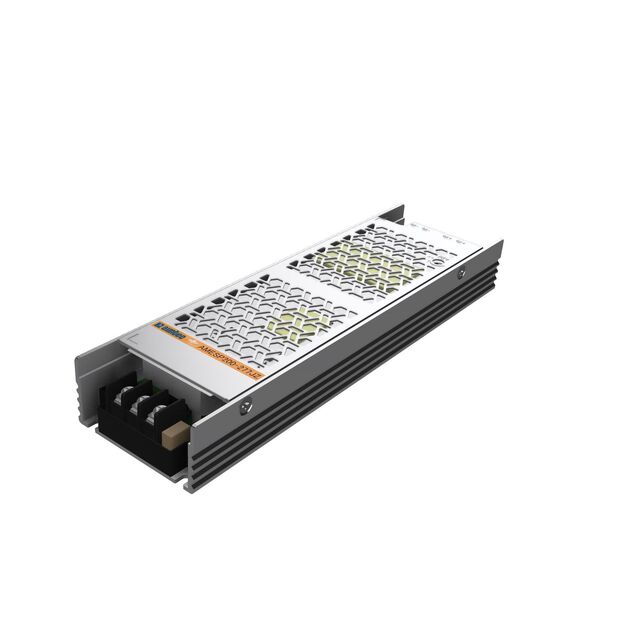

AMESP200U-12S277JZ
Enclosed AC DC Converters 1 Output 12V 85 ~ 305 VAC, 120 ~ 430 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | AMESP200U-12S277JZ |
|---|---|
| Applications | ITE (Commercial), Household Appliances |
| Approval Agency | CE |
| Current - Output 1 | 16.7 A |
| Efficiency | 93 % |
| Features | PFC, DC Input Capable, Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 200 W |
| Size / Dimension Height | 1.02 in |
| Size / Dimension Length | 7.71 in |
| Size / Dimension Width | 2.16 in |
| Standard Number | 60335-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 305 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 430 V |
| Voltage - Input (DC) Minimum | 120 V |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 12 V |
