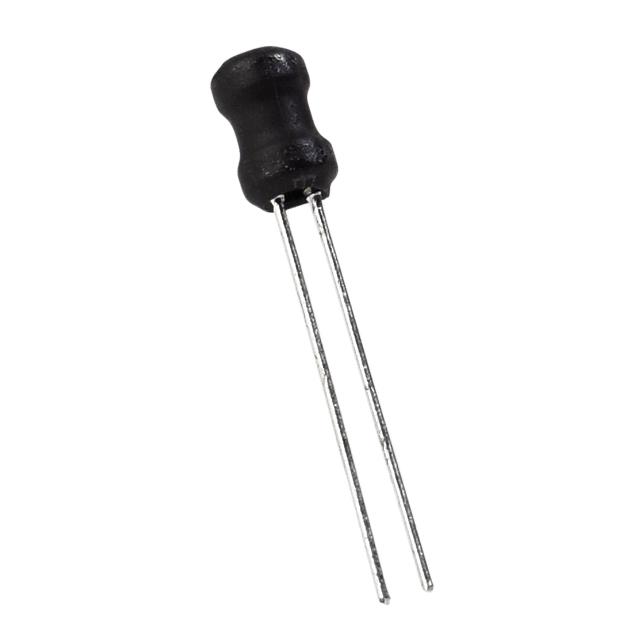

DRC-0406-102J-UL
ActiveSignal Transformer
RADIAL INDUCTOR WITH LEADS, 1000
DRC-0406-102J-UL
ActiveSignal Transformer
RADIAL INDUCTOR WITH LEADS, 1000
Description
General part information
DRC-0406-102J-UL
1 mH Unshielded Drum Core, Wirewound Inductor 150 mA 6.7Ohm Max Radial, Vertical Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | DRC-0406-102J-UL |
|---|---|
| Current Rating | 150 mA |
| DC Resistance (DCR) (Max) | 6.7 Ohm |
| Frequency - Self Resonant | 1 MHz |
| Inductance | 1 mH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | Vertical Cylinder, Radial |
| Package Name | Radial |
| Q | 90 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.217 in |
| Tolerance | 5 % |
| Type | Drum Core, Wirewound |
