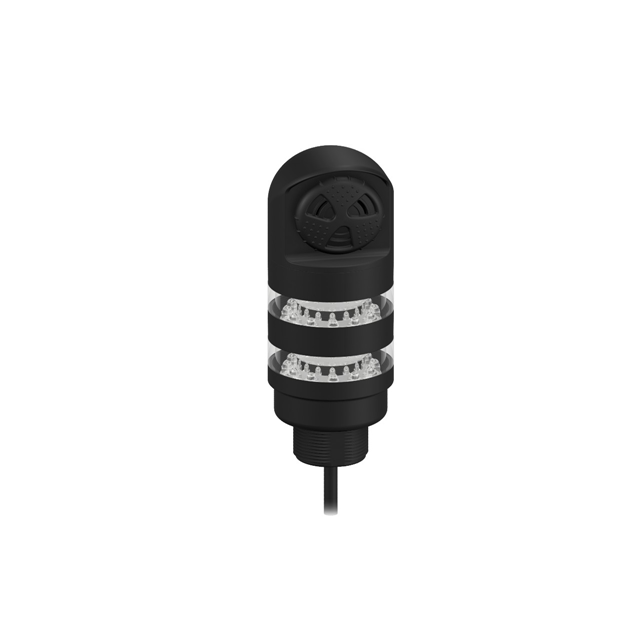

Specification	TL50BLGRALS

Features	Alarm
Function - Audible	Multiple
Function - Lighting	Steady
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Lamp Type	LED
Light Color	Green, Red
Number of Stacks	2
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-20 °C
Termination Style	Wire Leads
Type	Complete Unit
Voltage - Supply	24 VDC
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	12 VDC
Voltage - Supply (Option 1)	24 VAC
Voltage - Supply (Range 1 Maximum)	24 VDC
Voltage - Supply (Range 1 Minimum)	24 VAC
Voltage - Supply (Range 2 Maximum)	30 V
Voltage - Supply (Range 2 Minimum)	12 VDC
Voltage - Supply Maximum	30 V
Voltage - Supply Minimum	12 VAC

TL50BL Series

...

Part	Ingress Protection Description	Ingress Protection IP Rating	Function - Lighting	Lamp Type	Type	Light Color	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Number of Stacks	Termination Style	Function - Audible	Features	Voltage - Supply (Range 1 Minimum)	Voltage - Supply (Option 1)	Voltage - Supply	Voltage - Supply Maximum	Voltage - Supply Minimum	Voltage - Supply (Range 1 Maximum)	Voltage - Supply (Range 2 Minimum)	Voltage - Supply (Range 2 Maximum)
BANNER ENGINEERING TL50BLZG2R2C	Dust Tight Waterproof	IP67	Flashing	LED	Complete Unit	Green Red	50 °C	-40 °C	100 VAC	240 VAC	2	Wire Leads
BANNER ENGINEERING TL50BL8KQ	Dust Tight Waterproof	IP67	Multiple	LED	Complete Unit	Blue Green Red	50 °C	-40 °C	18 VAC	30 VDC	8	Connector	Programmable
BANNER ENGINEERING TL50BLGRAOS4Q	Dust Tight Waterproof	IP67	Steady	LED	Complete Unit	Green Red	50 °C	-20 °C	12 VDC	30 VDC	2	Connector	Alternating Continuous	Alarm	24 VAC	24 VAC	24 VDC	30 V	12 VAC	24 VDC	12 VDC	30 V
BANNER ENGINEERING TL50BLZR2 W/3M	Dust Tight Waterproof	IP67	Flashing	LED	Complete Unit	Red	50 °C	-40 °C	100 VAC	240 VAC	1	Wire Leads
BANNER ENGINEERING TL50BLGYRAOS4QP	Dust Tight Waterproof	IP67	Steady	LED	Complete Unit	Green Red Yellow	50 °C	-20 °C	12 VDC	30 VDC	3	Connector	Alternating Continuous	Alarm	24 VAC	24 VAC	24 VDC	30 V	12 VAC	24 VDC	12 VDC	30 V
BANNER ENGINEERING TL50BLZR1AOS4	Dust Tight Waterproof	IP67	Rotating	LED	Complete Unit	Red	50 °C	-20 °C	100 VAC	240 VAC	1	Wire Leads		Alarm
BANNER ENGINEERING TL50BLZG1Y1R1	Dust Tight Waterproof	IP67	Rotating	LED	Complete Unit	Green Red Yellow	50 °C	-40 °C	100 VAC	240 VAC	3	Wire Leads
BANNER ENGINEERING TL50BLZR2ALS3	Dust Tight Waterproof	IP67	Flashing	LED	Complete Unit	Red	50 °C	-20 °C	100 VAC	240 VAC	1	Wire Leads	Pulse	Alarm
BANNER ENGINEERING TL50BLGR1	Dust Tight Waterproof	IP67	Rotating	LED	Complete Unit	Green Red	50 °C	-20 °C	12 VDC	30 VDC	2	Wire Leads			24 VAC	24 VAC	24 VDC	30 V	12 VAC	24 VDC	12 VDC	30 V
BANNER ENGINEERING TL50BLGYBRAOSIQ	Dust Tight Waterproof	IP67	Rotating Steady	LED	Complete Unit	Blue Green Red Yellow	50 °C	-20 °C	12 VDC	30 VDC	4	Connector	Continuous	Adjustable Volume Alarm	24 VAC	24 VAC	24 VDC	30 V	12 VAC	24 VDC	12 VDC	30 V
