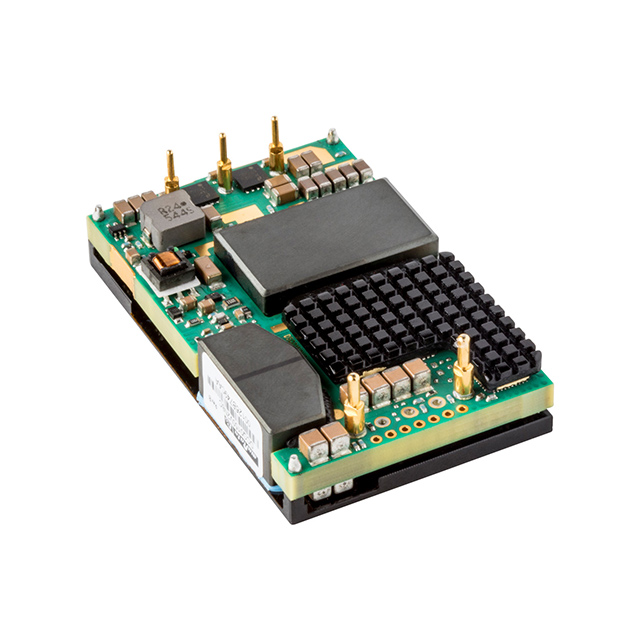

DCQ0150V2NBC
ActiveMurata Power Solutions Inc.
DC-DC CONVERTER, 12V, 50A ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DCQ0150V2NBC
ActiveMurata Power Solutions Inc.
DC-DC CONVERTER, 12V, 50A ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DCQ0150V2NBC | DCQ0150 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 50 A | 50 A |
| Efficiency | 96 % | 96 % |
| Features | OVP, OTP, OCP, Remote On/Off, SCP | OVP, OTP, OCP, Remote On/Off, SCP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | Quarter Brick | Quarter Brick |
| Power (Watts) | 600 W | 600 W |
| Size / Dimension [x] | 2.3 in | 2.3 in |
| Size / Dimension [x] | 58.4 mm | 58.4 mm |
| Size / Dimension [y] | 36.8 mm | 36.8 mm |
| Size / Dimension [y] | 1.45 in | 1.45 in |
| Size / Dimension [z] | 13.2 mm | 13.2 mm |
| Size / Dimension [z] | 0.52 " | 0.52 " |
| Supplier Device Package | Quarter Brick | Quarter Brick |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V | 75 V |
| Voltage - Input (Min) [Min] | 36 V | 36 V |
| Voltage - Isolation | 2250 VDC | 2250 VDC |
| Voltage - Output 1 | 12 V | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
DCQ0150 Series
DC DC CONVERTER 12V 600W
| Part | Number of Outputs | Efficiency | Voltage - Input (Min) [Min] | Power (Watts) | Package / Case | Voltage - Input (Max) [Max] | Supplier Device Package | Applications | Current - Output (Max) [Max] | Mounting Type | Voltage - Output 1 | Features | Voltage - Isolation | Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. DCQ0150V2NBSC | 1 | 96 % | 36 V | 600 W | Quarter Brick | 75 V | Quarter Brick | ITE (Commercial) | 50 A | Through Hole | 12 V | OCP, OTP, OVP, Remote On/Off, SCP | 2250 VDC | Isolated Module | 2.3 in | 13.2 mm | 36.8 mm | 1.45 in | 0.52 " | 58.4 mm | 85 °C | -40 °C |
Murata Power Solutions Inc. DCQ0150V2NBSC | ||||||||||||||||||||||
Murata Power Solutions Inc. DCQ0150V2NBC | ||||||||||||||||||||||
Murata Power Solutions Inc. DCQ0150V2NBC | 1 | 96 % | 36 V | 600 W | Quarter Brick | 75 V | Quarter Brick | ITE (Commercial) | 50 A | Through Hole | 12 V | OCP, OTP, OVP, Remote On/Off, SCP | 2250 VDC | Isolated Module | 2.3 in | 13.2 mm | 36.8 mm | 1.45 in | 0.52 " | 58.4 mm | 85 °C | -40 °C |
Description
General part information
DCQ0150 Series
Isolated Module DC DC Converter 1 Output 12V 50A 36V - 75V Input
