UF15KC12/23-BWHNSR-L24

Active

Mechatronics Fan Group

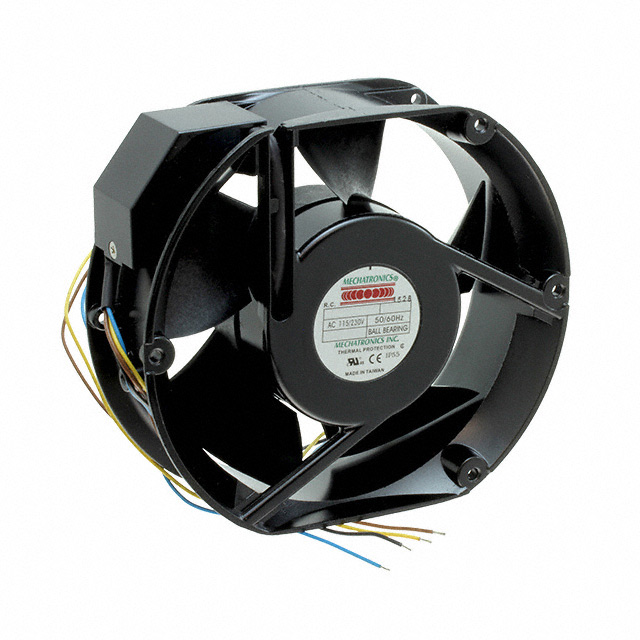

FAN AXIAL 172X55MM 115/230VAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC/DC Fans & Blowers Catalog AC Axial Part Numbering Guide +1

UF15KC12/23-BWHNSR-L24

Active

Mechatronics Fan Group

FAN AXIAL 172X55MM 115/230VAC

Deep-Dive with AI

DocumentsAC/DC Fans & Blowers Catalog AC Axial Part Numbering Guide +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 63.25

Description

General part information

UF15K Series

Fan Tubeaxial 115/230VAC Rectangular/Rounded - 172mm L x 150mm H Ball 293.0 CFM (8.20m³/min) 4 Wire Leads

Documents

Technical documentation and resources

AC/DC Fans & Blowers Catalog

Datasheet

AC Axial Part Numbering Guide

Datasheet

Specification	UF15KC12/23-BWHNSR-L24	UF15K Series

Air Flow	293 CFM	230 - 293 CFM
Air Flow	8.2 m³/min	6.44 - 8.2 m³/min
Approval Agency	cUL, UL, CE	cUL, UL, CE, CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	-	0.17 - 800 A
Current Rating (Amps) [Max]	0.34 A	0.34 A
Current Rating (Amps) [Min]	0.17 A	0.17 A
Fan Type	Tubeaxial	Tubeaxial
Features	Dual Voltage, Salt Fog Rated, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Dual Voltage, Salt Fog Rated, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP), Reverse Air Flow, Speed Sensor (Tach)
Ingress Protection	IP55 - Dust Protected, Water Resistant	IP55 - Dust Protected, Water Resistant
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT), Metal
Material - Frame	Aluminum	Aluminum
Noise	60 dB(A)	53 - 61 dB(A)
Operating Temperature [Max]	70 °C	70 - 90 °C
Operating Temperature [Max]	70 °C	70 - 90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	38 W	38 - 45 W
RPM	3400 RPM	3250 - 3400 RPM
Size / Dimension	Rectangular/Rounded	Rectangular/Rounded
Size / Dimension [x]	172 mm	172 mm
Size / Dimension [z]	150 mm	150 mm
Static Pressure	0.9 in H2O	0.5 - 0.9 in H2O
Static Pressure	224.2 Pa	124.5 - 224.2 Pa
Termination	4 Wire Leads	4 Wire Leads, 2 Terminals, 2 Wire Leads, 3 Wire Leads, 5 Wire Leads
Termination	-	3 - 5 Terminals
Voltage - Rated	-	115 - 230 VAC
Voltage - Rated [Max]	230 VAC	230 VAC
Voltage - Rated [Min]	115 VAC	115 VAC
Weight	1 kg	1 - 1.1 kg
Weight	2.3 lbs	2.3 - 2.5 lbs
Width [y]	55 mm	55 mm

Part

Ingress Protection

Fan Type

Operating Temperature [Max]

Operating Temperature [Min]

Current Rating (Amps) [Min]

Current Rating (Amps) [Max]

Features

Size / Dimension

Size / Dimension [z]

Size / Dimension [x]

Material - Frame

Air Flow

RPM

Weight

Noise

Bearing Type

Voltage - Rated [Max]

Voltage - Rated [Min]

Width [y]

Power (Watts)

Static Pressure

Approval Agency

Material - Blade

Termination

Voltage - Rated

Termination

Current Rating (Amps)

Mechatronics Fan Group

UF15KC12/23-BWHNSR-L36

IP55 - Dust Protected, Water Resistant

Tubeaxial

70 °C

-40 °C

0.17 A

0.34 A

Dual Voltage, Permanent Split Capacitor Motor, Salt Fog Rated, Thermal Overload Protector (TOP)

Rectangular/Rounded

150 mm

172 mm

Aluminum

293 CFM

8.2 m³/min

3400 RPM

1 kg

2.3 lbs

60 dB(A)

Ball

230 VAC

115 VAC

55 mm

38 W

0.9 in H2O

224.2 Pa

CE, cUL, UL

Polybutylene Terephthalate (PBT)

4 Wire Leads

Mechatronics Fan Group

UF15KC12-BTHNR

IP55 - Dust Protected, Water Resistant

Tubeaxial

70 °C

-40 °C

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

Rectangular/Rounded

150 mm

172 mm

Aluminum

293 CFM

8.2 m³/min

3400 RPM

1 kg

2.3 lbs

60 dB(A)

Ball

55 mm

38 W

0.9 in H2O

224.2 Pa

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

115 VAC

3 Terminals

0.34 A

Mechatronics Fan Group

UF15KM23-BTHR-F

Tubeaxial

90 °C

-40 °C

Thermal Overload Protector (TOP)

Rectangular/Rounded

150 mm

172 mm

Aluminum

230 CFM

6.44 m³/min

3250 RPM

1.1 kg

2.4 lbs

53 dB

Ball

55 mm

42 W

0.63 in H2O

156.9 Pa

CE, cUL, TUV, UL

Metal

2 Terminals

230 VAC

370 mA

Mechatronics Fan Group

UF15KMR23-BTHR-F

Tubeaxial

90 °C

-40 °C

Reverse Air Flow, Thermal Overload Protector (TOP)

Rectangular/Rounded

150 mm

172 mm

Aluminum

255 CFM

7.14 mł/min

3250 RPM

1.1 kg

2.4 lbs

61 dB(A)

Ball

55 mm

45 W

0.5 in H2O

124.5 Pa

CE, cUL, TUV, UL

Metal

2 Terminals

230 VAC

0.38 A

Mechatronics Fan Group

UF15KM23-BWHR-F-L24

Tubeaxial

90 °C

-40 °C

Thermal Overload Protector (TOP)

Rectangular/Rounded

150 mm

172 mm

Aluminum

230 CFM

6.44 m³/min

3250 RPM

1.1 kg

2.5 lbs

53 dB

Ball

55 mm

42 W

0.63 in H2O

156.9 Pa

CE, cUL, TUV, UL

Metal

2 Wire Leads

230 VAC

0.23 A

Mechatronics Fan Group

UF15KC12-BWHNSR-B1

IP55 - Dust Protected, Water Resistant

Tubeaxial

70 °C

-40 °C

Permanent Split Capacitor Motor, Salt Fog Rated, Speed Sensor (Tach), Thermal Overload Protector (TOP)

Rectangular/Rounded

150 mm

172 mm

Aluminum

293 CFM

8.2 m³/min

3400 RPM

1 kg

2.3 lbs

60 dB(A)

Ball

55 mm

38 W

0.9 in H2O

224.2 Pa

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

115 VAC

5 Terminals

0.34 A

Mechatronics Fan Group

UF15KC23-BTHR-B2

Tubeaxial

70 °C

-40 °C

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

Rectangular/Rounded

150 mm

172 mm

Aluminum

293 CFM

8.2 m³/min

3400 RPM

1 kg

2.3 lbs

60 dB(A)

Ball

55 mm

38 W

0.9 in H2O

224.2 Pa

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

230 VAC

3 Terminals

0.17 A

Mechatronics Fan Group

UF15KM12-BTHR-F-B1

Tubeaxial

90 °C

-40 °C

Speed Sensor (Tach), Thermal Overload Protector (TOP)

Rectangular/Rounded

150 mm

172 mm

Aluminum

230 CFM

6.44 m³/min

3250 RPM

1.1 kg

2.4 lbs

53 dB

Ball

55 mm

42 W

0.63 in H2O

156.9 Pa

CE, cUL, TUV, UL

Metal

115 VAC

3 Terminals

0.47 A

Mechatronics Fan Group

UF15KC12/23-BWHR

Tubeaxial

70 °C

-40 °C

0.17 A

0.34 A

Dual Voltage, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

Rectangular/Rounded

150 mm

172 mm

Aluminum

293 CFM

8.2 m³/min

3400 RPM

1 kg

2.3 lbs

60 dB(A)

Ball

230 VAC

115 VAC

55 mm

38 W

0.9 in H2O

224.2 Pa

CE, cUL, UL

Polybutylene Terephthalate (PBT)

4 Wire Leads

Mechatronics Fan Group

UF15KC23-BWHR

Tubeaxial

70 °C

-40 °C

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

Rectangular/Rounded

150 mm

172 mm

Aluminum

293 CFM

8.2 m³/min

3400 RPM

1 kg

2.3 lbs

60 dB(A)

Ball

55 mm

38 W

0.9 in H2O

224.2 Pa

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

3 Wire Leads

230 VAC

0.17 A

Part	Ingress Protection	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps) [Min]	Current Rating (Amps) [Max]	Features	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Material - Frame	Air Flow	Air Flow	RPM	Weight	Weight	Noise	Bearing Type	Voltage - Rated [Max]	Voltage - Rated [Min]	Width [y]	Power (Watts)	Static Pressure	Static Pressure	Approval Agency	Material - Blade	Termination	Voltage - Rated	Termination	Current Rating (Amps)
Mechatronics Fan Group UF15KC12/23-BWHNSR-L36	IP55 - Dust Protected, Water Resistant	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	0.17 A	0.34 A	Dual Voltage, Permanent Split Capacitor Motor, Salt Fog Rated, Thermal Overload Protector (TOP)	Rectangular/Rounded	150 mm	172 mm	Aluminum	293 CFM	8.2 m³/min	3400 RPM	1 kg	2.3 lbs	60 dB(A)	Ball	230 VAC	115 VAC	55 mm	38 W	0.9 in H2O	224.2 Pa	CE, cUL, UL	Polybutylene Terephthalate (PBT)	4 Wire Leads
Mechatronics Fan Group UF15KC12-BTHNR	IP55 - Dust Protected, Water Resistant	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C			Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Rectangular/Rounded	150 mm	172 mm	Aluminum	293 CFM	8.2 m³/min	3400 RPM	1 kg	2.3 lbs	60 dB(A)	Ball			55 mm	38 W	0.9 in H2O	224.2 Pa	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)		115 VAC	3 Terminals	0.34 A
Mechatronics Fan Group UF15KM23-BTHR-F		Tubeaxial	90 °C	90 °C	-40 °C	-40 °C			Thermal Overload Protector (TOP)	Rectangular/Rounded	150 mm	172 mm	Aluminum	230 CFM	6.44 m³/min	3250 RPM	1.1 kg	2.4 lbs	53 dB	Ball			55 mm	42 W	0.63 in H2O	156.9 Pa	CE, cUL, TUV, UL	Metal	2 Terminals	230 VAC		370 mA
Mechatronics Fan Group UF15KMR23-BTHR-F		Tubeaxial	90 °C	90 °C	-40 °C	-40 °C			Reverse Air Flow, Thermal Overload Protector (TOP)	Rectangular/Rounded	150 mm	172 mm	Aluminum	255 CFM	7.14 mł/min	3250 RPM	1.1 kg	2.4 lbs	61 dB(A)	Ball			55 mm	45 W	0.5 in H2O	124.5 Pa	CE, cUL, TUV, UL	Metal	2 Terminals	230 VAC		0.38 A
Mechatronics Fan Group UF15KM23-BWHR-F-L24		Tubeaxial	90 °C	90 °C	-40 °C	-40 °C			Thermal Overload Protector (TOP)	Rectangular/Rounded	150 mm	172 mm	Aluminum	230 CFM	6.44 m³/min	3250 RPM	1.1 kg	2.5 lbs	53 dB	Ball			55 mm	42 W	0.63 in H2O	156.9 Pa	CE, cUL, TUV, UL	Metal	2 Wire Leads	230 VAC		0.23 A
Mechatronics Fan Group UF15KC12-BWHNSR-B1	IP55 - Dust Protected, Water Resistant	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C			Permanent Split Capacitor Motor, Salt Fog Rated, Speed Sensor (Tach), Thermal Overload Protector (TOP)	Rectangular/Rounded	150 mm	172 mm	Aluminum	293 CFM	8.2 m³/min	3400 RPM	1 kg	2.3 lbs	60 dB(A)	Ball			55 mm	38 W	0.9 in H2O	224.2 Pa	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)		115 VAC	5 Terminals	0.34 A
Mechatronics Fan Group UF15KC23-BTHR-B2		Tubeaxial	70 °C	70 °C	-40 °C	-40 °C			Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Rectangular/Rounded	150 mm	172 mm	Aluminum	293 CFM	8.2 m³/min	3400 RPM	1 kg	2.3 lbs	60 dB(A)	Ball			55 mm	38 W	0.9 in H2O	224.2 Pa	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)		230 VAC	3 Terminals	0.17 A
Mechatronics Fan Group UF15KM12-BTHR-F-B1		Tubeaxial	90 °C	90 °C	-40 °C	-40 °C			Speed Sensor (Tach), Thermal Overload Protector (TOP)	Rectangular/Rounded	150 mm	172 mm	Aluminum	230 CFM	6.44 m³/min	3250 RPM	1.1 kg	2.4 lbs	53 dB	Ball			55 mm	42 W	0.63 in H2O	156.9 Pa	CE, cUL, TUV, UL	Metal		115 VAC	3 Terminals	0.47 A
Mechatronics Fan Group UF15KC12/23-BWHR		Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	0.17 A	0.34 A	Dual Voltage, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Rectangular/Rounded	150 mm	172 mm	Aluminum	293 CFM	8.2 m³/min	3400 RPM	1 kg	2.3 lbs	60 dB(A)	Ball	230 VAC	115 VAC	55 mm	38 W	0.9 in H2O	224.2 Pa	CE, cUL, UL	Polybutylene Terephthalate (PBT)	4 Wire Leads
Mechatronics Fan Group UF15KC23-BWHR		Tubeaxial	70 °C	70 °C	-40 °C	-40 °C			Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Rectangular/Rounded	150 mm	172 mm	Aluminum	293 CFM	8.2 m³/min	3400 RPM	1 kg	2.3 lbs	60 dB(A)	Ball			55 mm	38 W	0.9 in H2O	224.2 Pa	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	3 Wire Leads	230 VAC		0.17 A
