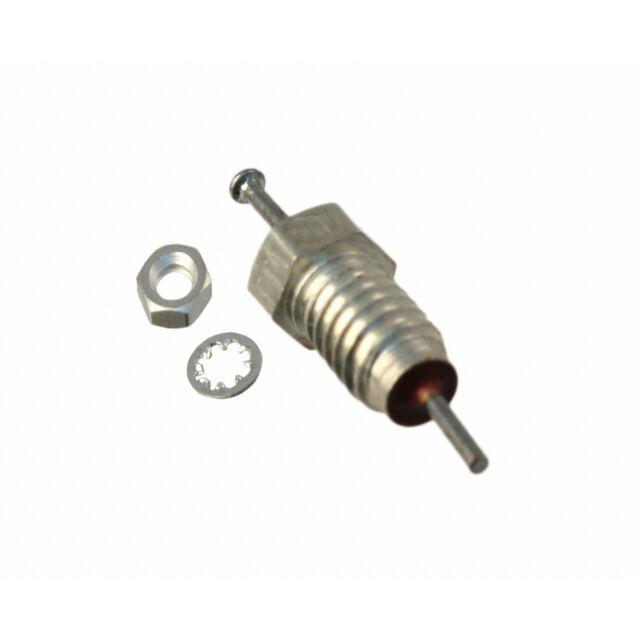

M15733/61-0008
ActiveTusonix a Subsidiary of CTS Electronic Components
FILTER LC(PI) 1000PF CHASSIS
M15733/61-0008
ActiveTusonix a Subsidiary of CTS Electronic Components
FILTER LC(PI) 1000PF CHASSIS
Description
General part information
M15733/61-0008
LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel C = 1000pF 10 A Axial, Bushing, 1 Turret Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | M15733/61-0008 |
|---|---|
| Attenuation Value | 70 dB |
| Capacitance | 1000 pF |
| Current | 10 A |
| ESD Protection | No |
| Filter Order | 3 |
| Mounting Type | Chassis Mount |
| Number of Channels | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Bushing, 1 Turret Lead, Axial |
| Size / Dimension Diameter | 0.187 in |
| Size / Dimension Length | 0.359 in |
| Technology | LC (Pi) |
| Type | Low Pass |
| Voltage - Rated | 100 VAC/DC |
