ANTC782M4IB-TRAY
ObsoleteGarmin Canada Inc.
RF TXRX MOD ISM > 1GHZ TRACE SMD
ANTC782M4IB-TRAY
ObsoleteGarmin Canada Inc.
RF TXRX MOD ISM > 1GHZ TRACE SMD
Description
General part information
ANTC782M4IB-TRAY

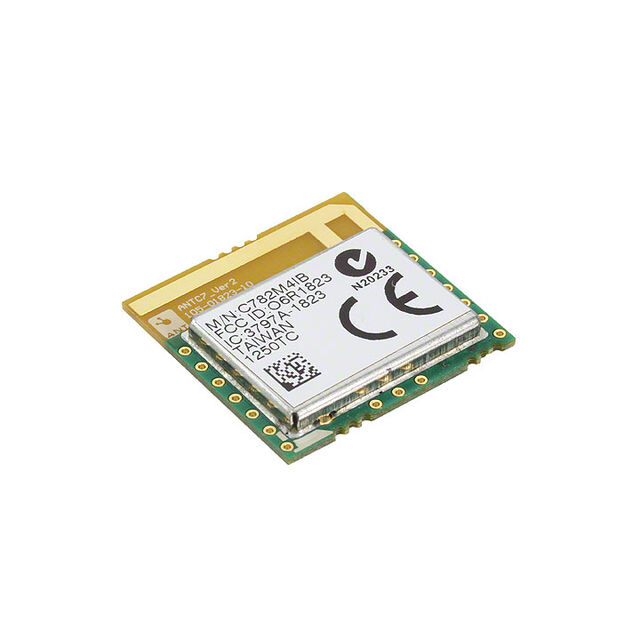

General ISM > 1GHz Transceiver Module 2.4GHz Integrated, Trace Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | ANTC782M4IB-TRAY |
|---|---|
| Antenna Type | Integrated, Trace |
| Current - Receiving | 23.7 mA |
| Current - Transmitting (Max) | 34.3 mA |
| Current - Transmitting (Min) | 25.9 mA |
| Data Rate | 20 kbps |
| Frequency | 2.4 GHz |
| Modulation | GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 17-SMD Module |
| Power - Output | 4 dBm |
| RF Family/Standard | General ISM > 1GHz |
| Sensitivity | -86 dBm |
| Serial Interfaces | SPI |
| Utilized IC / Part | CYWUSB693X |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 2 V |
