16STRREDSXL1000
ActiveRemington Industries
HOOK-UP STRND 16AWG RED 1000'
16STRREDSXL1000
ActiveRemington Industries
HOOK-UP STRND 16AWG RED 1000'
Description
General part information
16STRREDSXL1000

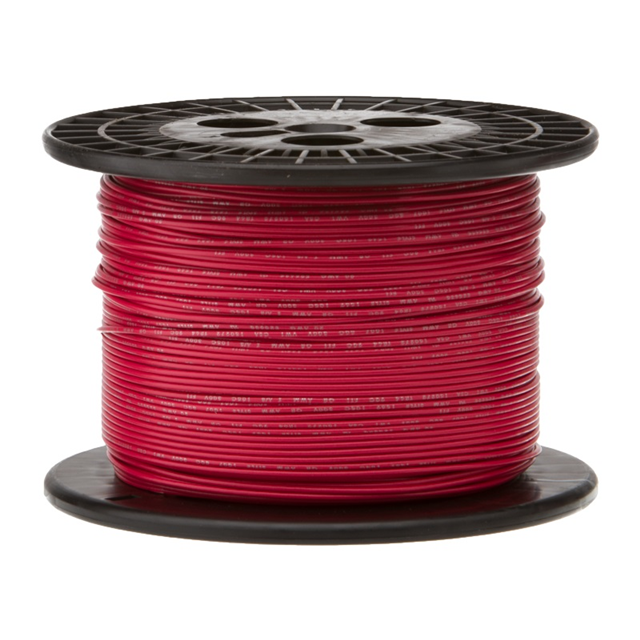

16 AWG Hook-Up, Automotive Wire 19/29 Red 60V 1000.0' (304.8m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 16STRREDSXL1000 |
|---|---|
| Cable Type | Hook-Up, Automotive |
| Conductor Material | Copper, Bare |
| Conductor Strand Count | 19 |
| Conductor Strand Gauge | 29 AWG |
| Features | Abrasion Resistant, Solvent Resistant, Oil Resistant, Chemical Resistant |
| Jacket (Insulation) Diameter | 0.118 in |
| Jacket (Insulation) Material | Polyethylene (XLPE) |
| Jacket Color | Red |
| Length | 1000 ft |
| Operating Temperature | 125 °C |
| Voltage | 60 V |
| Wire Gauge | 16 AWG |
