SELF-DRILLING SCREW - TYPE CSD -
1208KWMS188
ActiveKanebridge
SELF-DRILLING SCREW - TYPE CSD -
Description
General part information
1208KWMS188

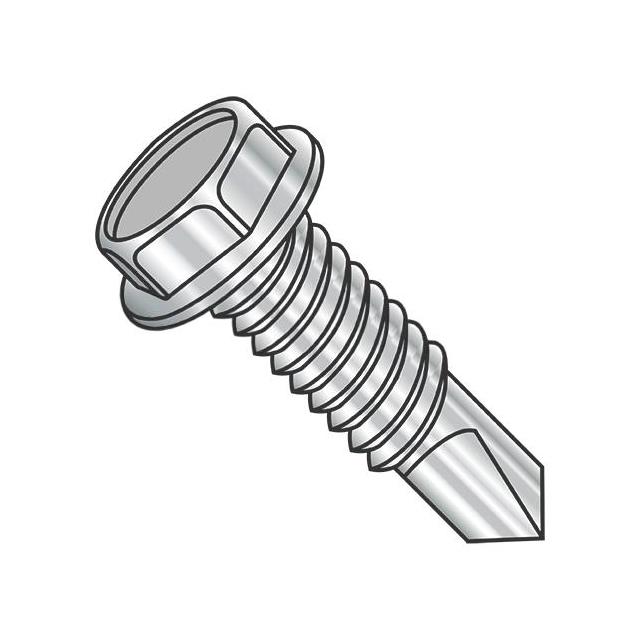

#12-24 Hex Head Self-Drilling Screw External Hex Drive Stainless Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 1208KWMS188 |
|---|---|
| Drive Type | External Hex, Hex Socket |
| Features | Washer Included |
| Head Diameter | 0.309 in |
| Head Height | 0.147 in |
| Length - Below Head | 0.5 in |
| Length - Overall | 0.647 in |
| Material | Stainless Steel |
| Plating | Plain |
| Screw Head Type | Hex Head |
| Thread Size (Max) | 24 mm |
| Thread Size (Min) | 12 mm |
| Type | Self-Drilling Screw |
