TGH-0200-05
Activet-Global Technology

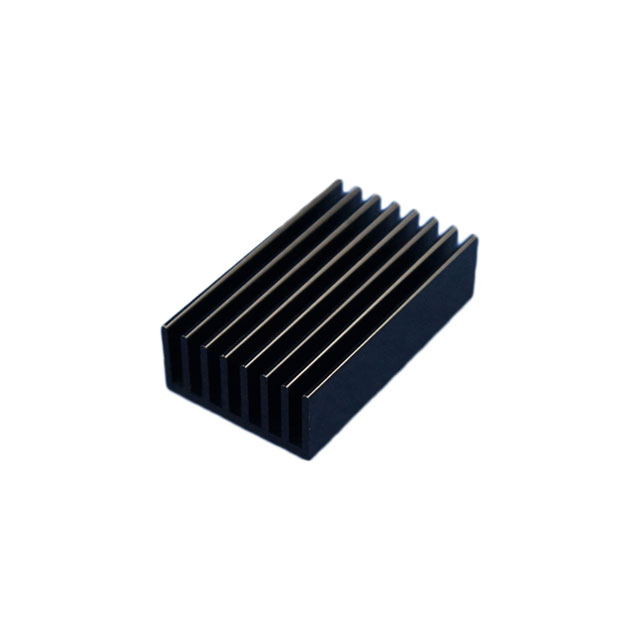

ALUMINIUM HEAT SINK 33X20MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TGH-0200-05
Activet-Global Technology
ALUMINIUM HEAT SINK 33X20MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TGH-0200-05 | TGH-0200 Series |
|---|---|---|
| Fin Height | 0.374 in | 0.374 in |
| Fin Height | 9.5 mm | 9.5 mm |
| Length [x] | 33 mm | 20 - 33 mm |
| Length [x] | 1.299 in | 0.787 - 1.299 " |
| Material | Aluminum | Aluminum |
| Material Finish | Black Anodized | Black Anodized |
| Shape | Rectangular, Fins | Square, Pin Fins, Rectangular, Fins, Fins |
| Type | Top Mount | Top Mount |
| Width [y] | 20 mm | 20 mm |
| Width [y] | 0.787 in | 0.787 in |
TGH-0200 Series
ALUMINIUM HEAT SINK 20X20MM
| Part | Shape | Width [y] | Width [y] | Length [x] | Length [x] | Material | Type | Fin Height | Fin Height | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|
t-Global Technology TGH-0200-03 | Pin Fins, Square | 20 mm | 0.787 in | 0.787 " | 20 mm | Aluminum | Top Mount | 0.374 in | 9.5 mm | |
t-Global Technology TGH-0200-05 | Rectangular, Fins | 20 mm | 0.787 in | 1.299 in | 33 mm | Aluminum | Top Mount | 0.374 in | 9.5 mm | Black Anodized |
t-Global Technology TGH-0200-02 | Fins, Square | 20 mm | 0.787 in | 0.787 " | 20 mm | Aluminum | Top Mount | Black Anodized |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.16 | |
| 10 | $ 2.10 | |||
| 100 | $ 1.82 | |||
| 1000 | $ 1.48 | |||
| 5000 | $ 1.45 | |||
Description
General part information
TGH-0200 Series
Heat Sink Aluminum Top Mount
