Description
General part information
09153000431

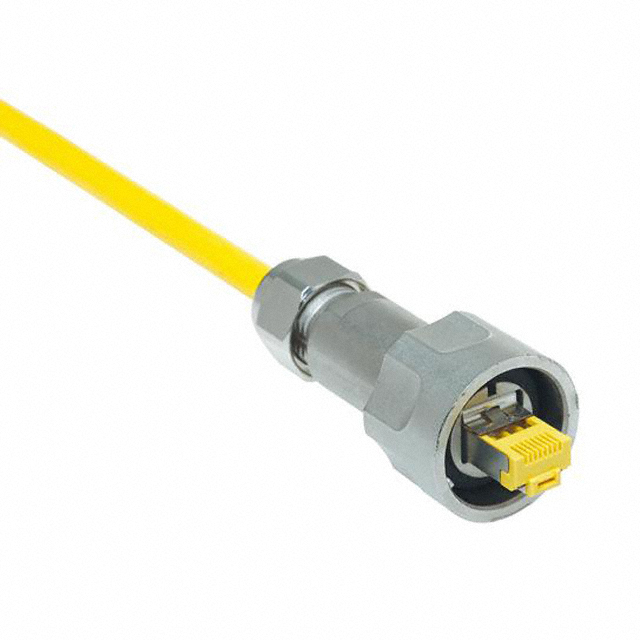

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat6 IDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 09153000431 |
|---|---|
| Cable Type | Solid or Stranded Wires, Round Cable |
| Connector Type | Plug, Ethernet, RJ45 |
| Current Rating | 1.5 A |
| Features | Circular Threaded Coupling |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Length | 2.795 in |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Ratings | Cat6 |
| Shielding | Shielded |
| Termination | IDC |
| Voltage Rating | 125 V |
| Wire Gauge (AWG) (Max) | 27 AWG |
| Wire Gauge (AWG) (Min) | 22 AWG |
