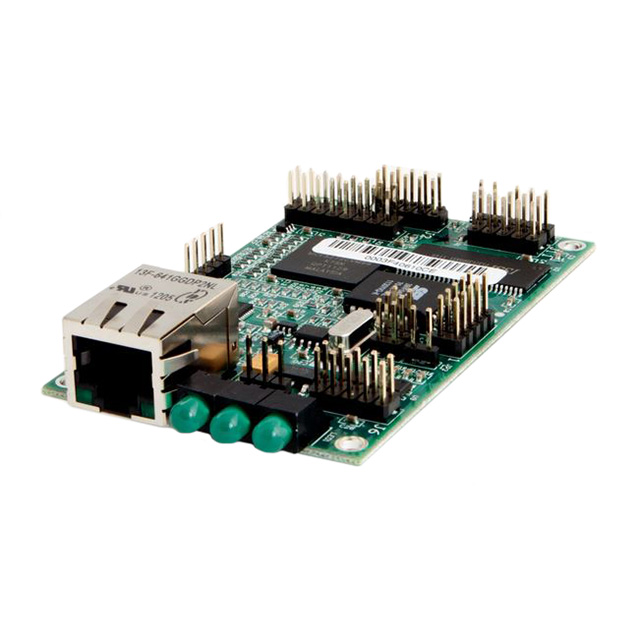

SB72-301IR

Obsolete

NetBurner Inc.

SBC 62.5MHZ 1 CORE 8MB/8MB RAM

Search across all available documentation for this part.

Obsolete

NetBurner Inc.

SBC 62.5MHZ 1 CORE 8MB/8MB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	SB72-301IR

Core Processor	ColdFire 5272
Ethernet	100 Mbps, 10 Mbps
Ethernet	(1)
Number of Cores	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
RAM Capacity/Installed [custom]	8 MB
RAM Capacity/Installed [custom]	8 MB
RS-232 (422, 485)	2
Size / Dimension [x]	82.55 mm
Size / Dimension [x]	3.25 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Speed	62.5 MHz

Part	Core Processor	Speed	RAM Capacity/Installed [custom]	RAM Capacity/Installed [custom]	Number of Cores	RS-232 (422, 485)	Ethernet	Ethernet	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
NetBurner Inc. SB72-301IR	ColdFire 5272	62.5 MHz	8 MB	8 MB	1	2	10 Mbps 100 Mbps	(1)	85 °C	-40 °C	2 in	82.55 mm	3.25 in	50.8 mm
NetBurner Inc. SB72-301CR	ColdFire 5272	62.5 MHz	8 MB	8 MB	1	2	10 Mbps 100 Mbps	(1)	70 °C	0 °C	2 in	82.55 mm	3.25 in	50.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Single Board Computer 62.5MHz 1 Core 8MB/8MB RAM ColdFire 5272
