ZXGD3112N7TC
ActiveDiodes Inc

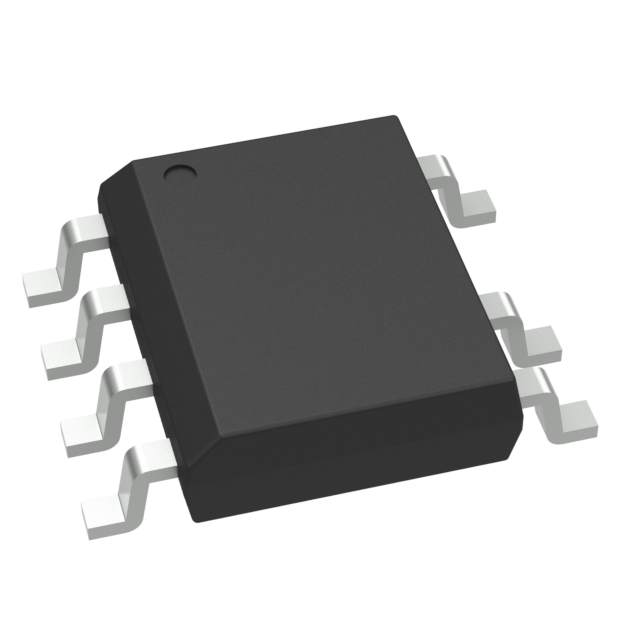

ANALOG CIRCUIT, 1 FUNC, PDSO7, SOP-7
Deep-Dive with AI
Search across all available documentation for this part.
ZXGD3112N7TC
ActiveDiodes Inc
ANALOG CIRCUIT, 1 FUNC, PDSO7, SOP-7
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZXGD3112N7TC |
|---|---|
| Applications | General Purpose |
| Current - Supply | 260 µA |
| Delay Time - OFF | 400 ns |
| Delay Time - ON | 400 ns |
| FET Type | N-Channel |
| Internal Switch(s) | False |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -50 °C |
| Package / Case | 8-SOIC |
| Package / Case | 0.154 in |
| Package / Case [custom] | 7 |
| Package / Case [custom] | 3.9 mm |
| Ratio - Input:Output [custom] | N:1 |
| Supplier Device Package | 7-SO |
| Type | N+1 ORing Controller |
| Voltage - Supply [Max] | 20 V |
| Voltage - Supply [Min] | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.77 | |
| 10 | $ 1.82 | |||
| 25 | $ 1.57 | |||
| 100 | $ 1.30 | |||
| 250 | $ 1.25 | |||
| Digi-Reel® | 1 | $ 2.77 | ||
| 10 | $ 1.82 | |||
| 25 | $ 1.57 | |||
| 100 | $ 1.30 | |||
| 250 | $ 1.25 | |||
| Tape & Reel (TR) | 2500 | $ 1.25 | ||
Description
General part information
ZXGD3112N7 Series
ZXGD3112N7 is a 400V Active OR'ing MOSFET controller designed for driving a very low RDS(ON)Power MOSFET as an ideal diode. This replaces the standard rectifier to reduce the forward voltage drop and overall increase the power transfer efficiency.
