N10250-5242PC

Active

JE150333498 N10250-5242PC=50/MDR/RC/RA/RECP/HITEMP/4-40/SWLK/30MIN

Search across all available documentation for this part.

Active

JE150333498 N10250-5242PC=50/MDR/RC/RA/RECP/HITEMP/4-40/SWLK/30MIN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N10250-5242PC	N10250 Series

Connector Style	Outer Shroud Contacts	Outer Shroud Contacts
Connector Type	Receptacle	Receptacle
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Shielded	Shielded, Board Lock
Flange Feature	Housing/Shell (4-40), Latchblocks	Housing/Shell, Housing/Shell (4-40), Latchblocks
Flange Feature	-	2.6 M
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Panel Mount, Right Angle
Number of Positions	50	50
Number of Rows	2	2
Termination	Solder	Solder

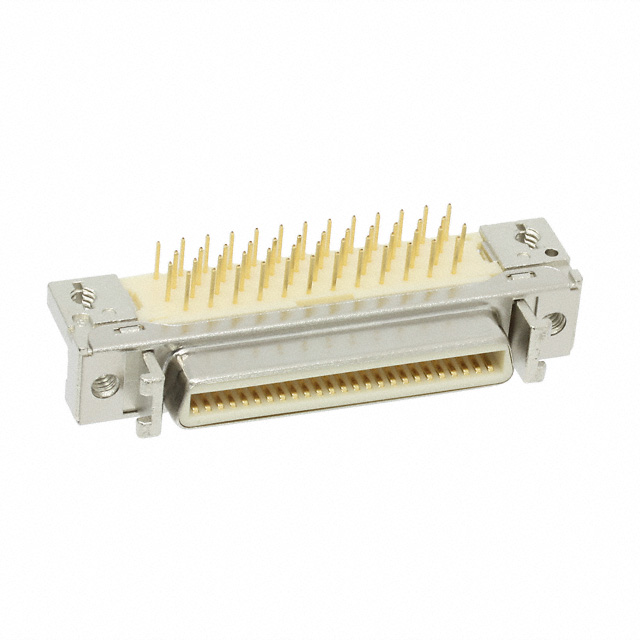

CONN MINI D RIBBON RCP 50 POS 1.27MM SOLDER ST THRU-HOLE 50 TERMINAL 1 PORT

Part	Flange Feature	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Connector Type	Mounting Type	Contact Finish	Connector Style	Termination	Features	Number of Rows
3M N10250-6212PC	Housing/Shell	2.6 M	0.76 Ám	30 Áin	50	Receptacle	Panel Mount, Through Hole	Gold	Outer Shroud Contacts	Solder	Shielded	2
3M N10250-6212VC	Housing/Shell	2.6 M	0.76 Ám	30 Áin	50	Receptacle	Panel Mount, Through Hole	Gold	Outer Shroud Contacts	Solder	Shielded	2
3M N10250-52E2VC	Housing/Shell (4-40), Latchblocks		0.76 Ám	30 Áin	50	Receptacle	Panel Mount, Right Angle, Through Hole	Gold	Outer Shroud Contacts	Solder	Board Lock, Shielded	2
3M N10250-52B2PC	Housing/Shell	2.6 M	0.76 Ám	30 Áin	50	Receptacle	Panel Mount, Right Angle, Through Hole	Gold	Outer Shroud Contacts	Solder	Board Lock, Shielded	2
3M N10250-5242PC	Housing/Shell (4-40), Latchblocks		0.76 Ám	30 Áin	50	Receptacle	Panel Mount, Right Angle, Through Hole	Gold	Outer Shroud Contacts	Solder	Shielded	2
