LB11685AVGEVB
ActiveEVALUATION BOARD, BLDC MOTOR CONTROL, LB11685AV, POWER MANAGEMENT
LB11685AVGEVB
ActiveEVALUATION BOARD, BLDC MOTOR CONTROL, LB11685AV, POWER MANAGEMENT
Description
General part information
LB11685AVGEVB

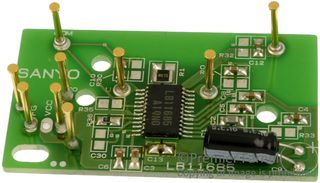

LB11685AVGEVB is a evaluation board for LB11685AV motor driver IC. It is a three phase full wave current linear drive motor driver IC. It adopts a sensorless control system without the use of a Hall effect device. For quieter operation, the LB11685AV features a current soft switching circuit and be optimal for driving the cooling fan motors.
Technical Specifications
Parameters and characteristics for this part
| Specification | LB11685AVGEVB |
|---|---|
| Contents | Board |
| Function | Driver, Motor Controller |
| Type | Power Management |
| Utilized IC / Part | LB11685AV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
