A63-142-313P161

Obsolete

EDAC Inc.

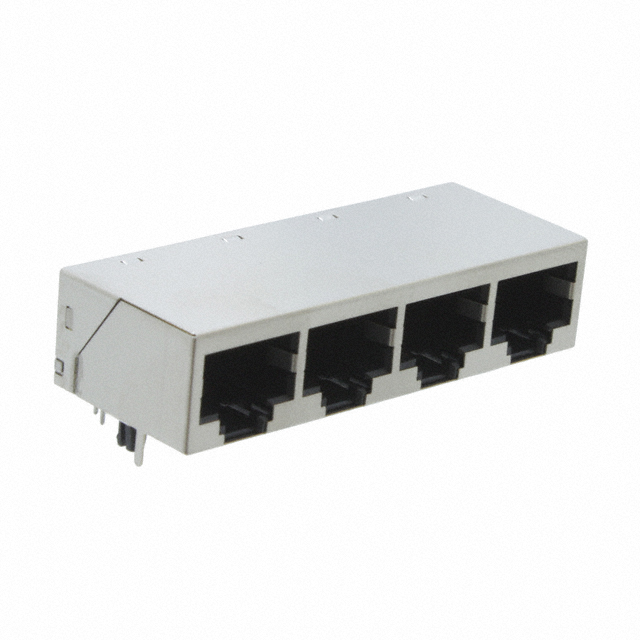

CONN JACK 4PORT 100 BASE-T PCB

Search across all available documentation for this part.

Obsolete

EDAC Inc.

CONN JACK 4PORT 100 BASE-T PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A63-142-313P161	A63-142 Series

Applications	10/100 Base-T, AutoMDIX	10/100 Base-T, AutoMDIX
Connector Type	RJ45	RJ45
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Material	Phosphor Bronze	Phosphor Bronze
Height Above Board	-	0.516 in
Height Above Board	-	13.11 mm
Height Above Board [z]	13.8 mm	13.8 mm
Height Above Board [z]	0.543 in	0.543 in
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled, Glass Filled, Polyamide (PA46), Nylon 4/6
LED Color	Yellow - Green	Yellow - Green, Does Not Contain LED
Mounting Type	Through Hole	Through Hole
Number of Ports	4	4
Number of Rows	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Orientation	90 °	90 °
Shield Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Tab Direction	Down	Down
Termination	Solder	Solder

CONN JACK 4PORT 100 BASE-T PCB

Part	Height Above Board [z]	Height Above Board [z]	Termination	Number of Ports	Shield Material	Number of Rows	Contact Finish Thickness	LED Color	Tab Direction	Connector Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Mounting Type	Housing Material	Applications	Shielding	Contact Finish	Height Above Board	Height Above Board
EDAC Inc. A63-142-313P161	13.8 mm	0.543 in	Solder	4	Copper Alloy	1	Flash	Yellow - Green	Down	RJ45	Phosphor Bronze	70 °C	0 °C	90 °	Through Hole	Polybutylene Terephthalate (PBT), Glass Filled	10/100 Base-T, AutoMDIX	Shielded	Gold
EDAC Inc. A63-142-300N161			Solder	4	Copper Alloy	1	Flash	Does Not Contain LED	Down	RJ45	Phosphor Bronze	70 °C	0 °C	90 °	Through Hole	Glass Filled, Nylon 4/6, Polyamide (PA46)	10/100 Base-T, AutoMDIX	Shielded	Gold	0.516 in	13.11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
