Description
General part information

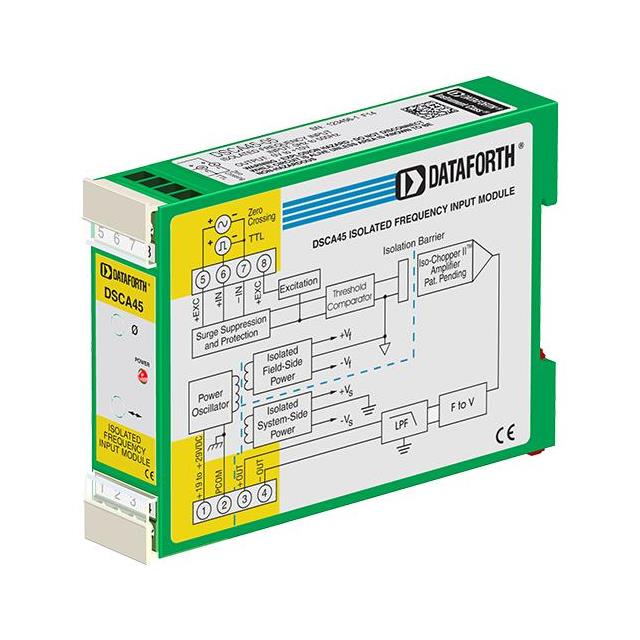

DSCA45-05
FREQUENCY SIGNAL CONDITIONER DIN
Technical Specifications
Parameters and characteristics for this part
| Specification | DSCA45-05 |
|---|---|
| Input Frequency (Additional) Maximum | 10 kHz |
| Input Frequency (Additional) Minimum | 0 kHz |
| Input Range (Additional) Type | TTL |
| Input Type | Frequency |
| Isolation | 1500 V |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Voltage |
| Output Voltage Range (Max) | 10 V |
| Output Voltage Range (Min) | 0 V |
| Termination Style | Screw Terminal |
| Type | Signal Conditioner |
| Voltage - Supply (Maximum) | 29 V |
| Voltage - Supply (Minimum) | 19 V |
