2086-1206/700-000/997-607
ActiveWAGO Corporation

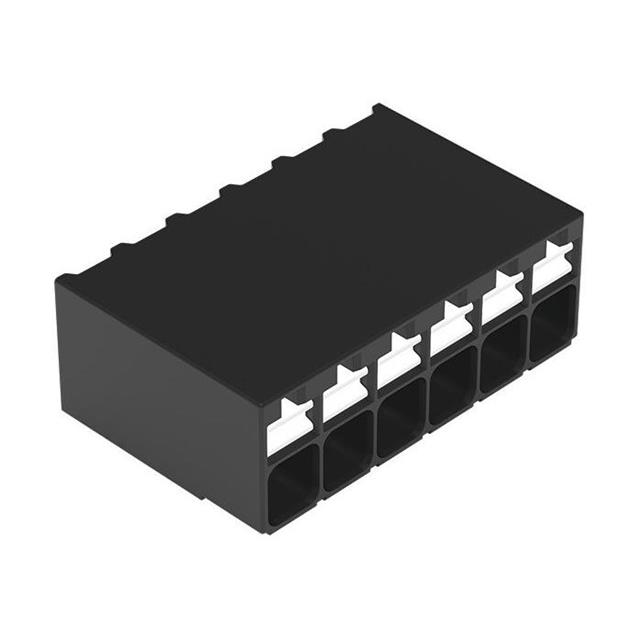

TERM BLK 6P SIDE ENT 3.5MM SMT
2086-1206/700-000/997-607
ActiveWAGO Corporation
TERM BLK 6P SIDE ENT 3.5MM SMT
Description
General part information
2086-1206/700-000/997-607
6 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 2086-1206/700-000/997-607 |
|---|---|
| Clamp Material | Steel |
| Clamp Plating | Nickel Plated |
| Color | Black |
| Contact Material | Electrolytic Copper |
| Current | 10 A |
| Features | Push Button Actuated |
| Housing Material | Glass Filled, PPA, Polyphthalamide |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Surface Mount |
| Number of Levels | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -60 °C |
| Pitch | 0.138 in |
| Plating | Tin Plated |
| Positions Per Level | 6 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Termination | Push Button Clamp, Screwless |
