1219/12C SL001
ActiveALPHA WIRE

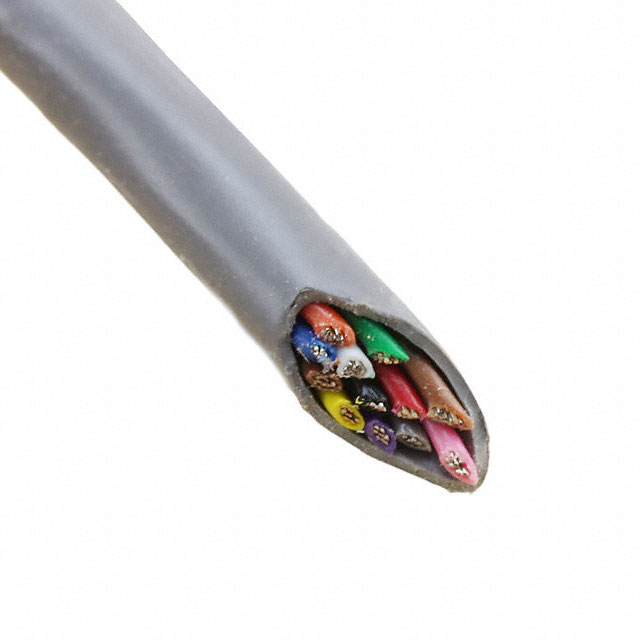

CABLE 12COND 24AWG SHLD SLATE
Deep-Dive with AI
Search across all available documentation for this part.
1219/12C SL001
ActiveALPHA WIRE
CABLE 12COND 24AWG SHLD SLATE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1219/12C SL001 | 1219/12C Series |
|---|---|---|
| Cable Type | Multi-Conductor | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG | 32 AWG |
| Conductor Strand [custom] | 7 | 7 |
| Features | Drain Wire | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.251 in | 0.251 in |
| Jacket (Insulation) Diameter [diameter] | 6.38 mm | 6.38 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Slate | Slate |
| Length | 1000 ft | 1000 ft |
| Length | 304.8 m | 304.8 m |
| Length | - | 30.5 m |
| Length | - | 100 ft |
| Number of Conductors | 12 | 12 |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -20 C | -20 C |
| Shield Coverage | 100 % | 100 % |
| Shield Material | Aluminum | Aluminum |
| Shield Type | Foil | Foil |
| Usage | Control, Communication | Control, Communication |
| Voltage | 300 V | 300 V |
| Wire Gauge | 24 AWG | 24 AWG |
1219/12C Series
SHIELDED MULTI-CONDUCTOR CABLE 12CONDUCTORS 24AWG 6.75MM 300VAC SLATE 30.48M SPOOL
| Part | Features | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Shield Coverage | Number of Conductors | Cable Type | Wire Gauge | Jacket (Insulation) Material | Jacket Color | Conductor Insulation | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Material | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Shield Type | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE 1219/12C SL005 | Drain Wire | Communication, Control | 32 AWG | 7 | 100 % | 12 | Multi-Conductor | 24 AWG | Poly-Vinyl Chloride (PVC) | Slate | Poly-Vinyl Chloride (PVC) | 300 V | 0.251 in | 6.38 mm | Aluminum | Copper, Tinned | -20 C | 80 C | Foil | 30.5 m | 100 ft | ||
ALPHA WIRE 1219/12C SL001 | Drain Wire | Communication, Control | 32 AWG | 7 | 100 % | 12 | Multi-Conductor | 24 AWG | Poly-Vinyl Chloride (PVC) | Slate | Poly-Vinyl Chloride (PVC) | 300 V | 0.251 in | 6.38 mm | Aluminum | Copper, Tinned | -20 C | 80 C | Foil | 1000 ft | 304.8 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 1848.97 | |
Description
General part information
1219/12C Series
12 Conductor Multi-Conductor Cable Slate 24 AWG Foil 1000.0' (304.8m)
