B32776H8276K000
ActiveEPCOS - TDK Electronics
CAP FILM 27UF 10% 700VDC RADIAL
B32776H8276K000
ActiveEPCOS - TDK Electronics
CAP FILM 27UF 10% 700VDC RADIAL
Description
General part information
B32776H8276K000

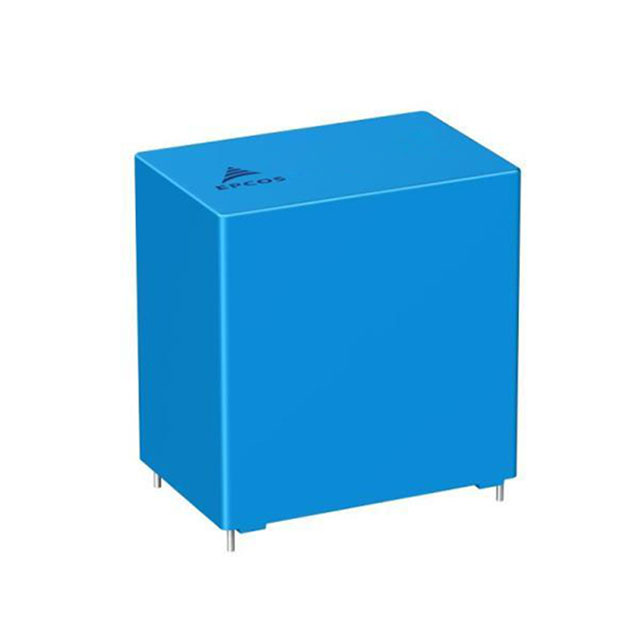

27 µF Film Capacitor 700V Polypropylene (PP), Metallized Radial - 4 Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | B32776H8276K000 |
|---|---|
| Applications | DC Filtering, DC Link |
| Capacitance | 27 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 5.8 mOhm |
| Features | Long Life |
| Height - Seated (Max) | 1.673 in |
| Lead Spacing | 1.476 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Leads |
| Package Name | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 1.654 in |
| Size / Dimension Width | 1.102 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - DC | 700 VDC |
