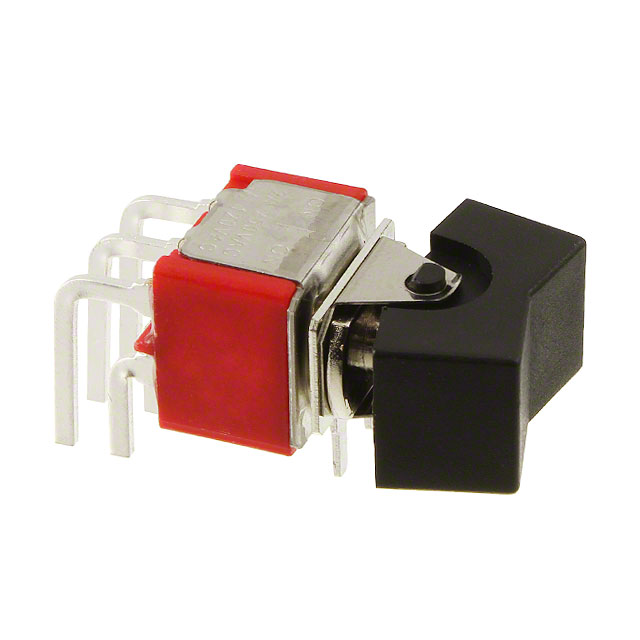

Specification	300DP3J1BLKM6QE

Actuator Marking	No Marking
Actuator Type	Concave (Standard V)
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating	5 A
Electrical Life (Cycles)	40000
Features	Epoxy Sealed Terminals
Mounting Type	Through Hole, Right Angle
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Switch Function	On-Off-On
Termination Style	PC Pin
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

300 Series

...

Part	Electrical Life (Cycles)	Actuator Marking	Voltage Rating - DC	Color - Actuator/Cap	Switch Function	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Actuator Type	Voltage Rating - AC	Circuit	Features	Termination Style	Current Rating
E-Switch 300SP4J2BLKVS5QE	40000	No Marking	28 V	Black	Mom-Off-Mom	85 °C	-30 °C	Through Hole	Paddle	120 V	SPDT	Epoxy Sealed Terminals	PC Pin	5 A
E-Switch 300SP4J6M7QE	40000	No Marking	28 V	Black	Mom-Off-Mom	85 °C	-30 °C	Right Angle Through Hole Vertical	Paddle	120 V	SPDT	Epoxy Sealed Terminals	PC Pin	5 A
E-Switch 300SP2J1BLKVS2RE		No Marking	20 V	Black	On-Mom	85 °C	-30 °C	Through Hole	Concave (Standard V)	20 V	SPDT	Epoxy Sealed Terminals	PC Pin	0.4 VA
E-Switch 300SP4J2BLKVS4QE		No Marking	28 V	Black	Mom-Off-Mom	85 °C	-30 °C	Through Hole	Paddle	120 V	SPDT	Epoxy Sealed Terminals	PC Pin	5 A
E-Switch 300DP4J3BLKVS2QE	40000	No Marking	28 V	Black	Mom-Off-Mom	85 °C	-30 °C	Through Hole	Concave (Standard V)	120 V	DPDT	Epoxy Sealed Terminals	PC Pin	5 A
E-Switch 300SP1J1VS2RE	40000	No Marking	20 V	Black	On-On	85 °C	-30 °C	Through Hole	Concave (Standard V)	20 V	SPDT	Epoxy Sealed Terminals	PC Pin	0.4 VA
E-Switch 300SP4J1BLKM6RE	40000	No Marking	20 V	Black	Mom-Off-Mom	85 °C	-30 °C	Right Angle Through Hole	Concave (Standard V)	20 V	SPDT	Epoxy Sealed Terminals	PC Pin	0.4 VA
E-Switch 300SP2J1BLKM7RE	40000	No Marking	20 V	Black	On-Mom	85 °C	-30 °C	Right Angle Through Hole Vertical	Concave (Standard V)	20 V	SPDT	Epoxy Sealed Terminals	PC Pin	0.4 VA
E-Switch 300DP3J3BLKVS2RE		No Marking	20 V	Black	On-Off-On	85 °C	-30 °C	Through Hole	Concave (Standard V)	20 V	DPDT	Epoxy Sealed Terminals	PC Pin	0.4 VA
E-Switch 300DP6J1BLKM2QE		No Marking	28 V	Black	On-On-On	85 °C	-30 °C	Through Hole	Concave (Standard V)	120 V	SP3T	Jumper needed to achieve triple throw	PC Pin	5 A
