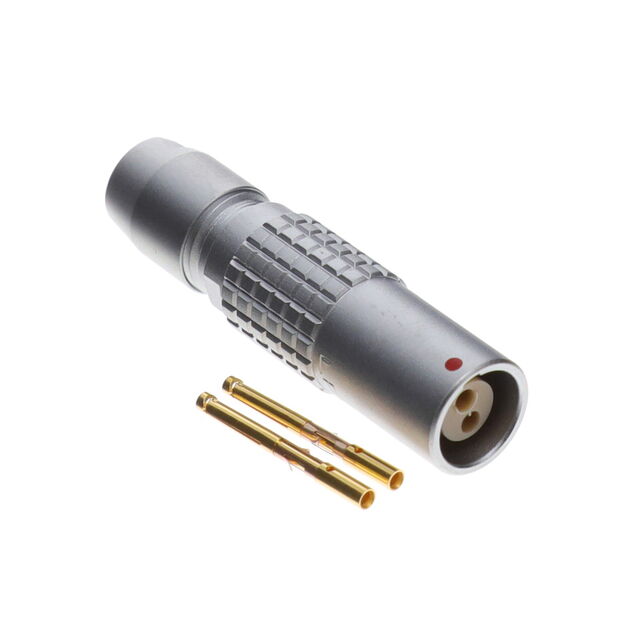

Specification	PHG.0B.302.CYMD56

Backshell Material	Brass
Cable Opening (Max)	0.22 in
Cable Opening (Min)	0.209 in
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 µin
Contact Material	Bronze
Current Rating	10 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyetheretherketone, PEEK
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature (Max)	250 °C
Operating Temperature (Min)	-55 °C
Orientation	G
Plating	Chrome
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	302
Shell Size - Insert	302
Shielding	Shielded
Termination	Crimp

PHG.0B Series

...

Part	Cable Opening (Max)	Cable Opening (Min)	Ingress Protection Description	Ingress Protection IP Rating	Shell Size - Insert	Shell Size - Insert	Insert Material	Number of Positions	Current Rating	Features	Contact Material	Shielding	Mounting Type	Primary Material	Material Flammability Rating	Termination	Connector Type	Shell Finish	Color	Shell Material	Contact Finish Thickness - Mating	Plating	Backshell Material	Orientation	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Mating	Fastening Type
LEMO PHG.0B.305.CLLD42	0.165 in	0.126 in	Dust Protected	IP50	305	305	PEEK Polyetheretherketone	5	6.5 A	Backshell	Bronze	Shielded	Free Hanging (In-Line)	Metal	UL94 V-0	Solder Cup	Female Sockets Receptacle	Chrome	Silver	Brass	59 µin	Chrome	Brass	G	250 °C	-55 °C	Gold	Push-Pull
LEMO PHG.0B.302.CLLD42Z	0.165 in	0.126 in	Dust Protected	IP50	302	302	PEEK Polyetheretherketone	2	10 A	Backshell	Bronze	Shielded	Free Hanging (In-Line)	Metal	UL94 V-0	Solder Cup	Female Sockets Receptacle	Chrome	Silver	Brass	59 µin	Chrome	Brass	G	250 °C	-55 °C	Gold	Push-Pull
LEMO PHG.0B.304.CLLD42	0.165 in	0.126 in	Dust Protected	IP50	304	304	PEEK Polyetheretherketone	4	7 A	Backshell	Bronze	Shielded	Free Hanging (In-Line)	Metal	UL94 V-0	Solder Cup	Female Sockets Receptacle	Chrome	Silver	Brass	59 µin	Chrome	Brass	G	250 °C	-55 °C	Gold	Push-Pull
LEMO PHG.0B.304.CLLZ			Dust Protected	IP50	304	304	PEEK Polyetheretherketone	4	7 A	Backshell	Bronze	Shielded	Free Hanging (In-Line)	Metal	UL94 V-0	Solder Cup	Female Sockets Receptacle	Chrome	Silver	Brass	59 µin	Chrome	Brass	G	250 °C	-55 °C	Gold	Push-Pull
LEMO PHG.0B.303.CLLD42	0.165 in	0.126 in	Dust Protected	IP50	303	303	PEEK Polyetheretherketone	3	8 A	Backshell	Bronze	Shielded	Free Hanging (In-Line)	Metal	UL94 V-0	Solder Cup	Female Sockets Receptacle	Chrome	Silver	Brass	59 µin	Chrome	Brass	G	250 °C	-55 °C	Gold	Push-Pull
LEMO PHG.0B.307.CLLD42Z	0.165 in	0.126 in	Dust Protected	IP50	307	307	PEEK Polyetheretherketone	7	2.5 A	Backshell	Bronze	Shielded	Free Hanging (In-Line)	Metal	UL94 V-0	Solder Cup	Female Sockets Receptacle	Chrome	Silver	Brass	59 µin	Chrome	Brass	G	250 °C	-55 °C	Gold	Push-Pull
LEMO PHG.0B.304.CLLZZ			Dust Protected	IP50	304	304	PEEK Polyetheretherketone	4	7 A	Backshell	Bronze	Shielded	Free Hanging (In-Line)	Metal	UL94 V-0	Solder Cup	Female Sockets Receptacle	Chrome	Silver	Brass	59 µin	Chrome	Brass	G	250 °C	-55 °C	Gold	Push-Pull
LEMO PHG.0B.307.CLLD21	0.087 in	0.055 in	Dust Protected	IP50	307	307	PEEK Polyetheretherketone	7	2.5 A	Backshell	Bronze	Shielded	Free Hanging (In-Line)	Metal	UL94 V-0	Solder Cup	Female Sockets Receptacle	Chrome	Silver	Brass	59 µin	Chrome	Brass	G	250 °C	-55 °C	Gold	Push-Pull
LEMO PHG.0B.302.CYMD21	0.087 in	0.055 in	Dust Protected	IP50	302	302	PEEK Polyetheretherketone	2	10 A	Backshell	Bronze	Shielded	Free Hanging (In-Line)	Metal	UL94 V-0	Crimp	Female Sockets Receptacle	Chrome	Silver	Brass	59 µin	Chrome	Brass	G	250 °C	-55 °C	Gold	Push-Pull
LEMO PHG.0B.304.CLLD31	0.126 in	0.091 in	Dust Protected	IP50	304	304	PEEK Polyetheretherketone	4	7 A	Backshell	Bronze	Shielded	Free Hanging (In-Line)	Metal	UL94 V-0	Solder Cup	Female Sockets Receptacle	Chrome	Silver	Brass	59 µin	Chrome	Brass	G	250 °C	-55 °C	Gold	Push-Pull
