N2550-5002-RB
Active3M

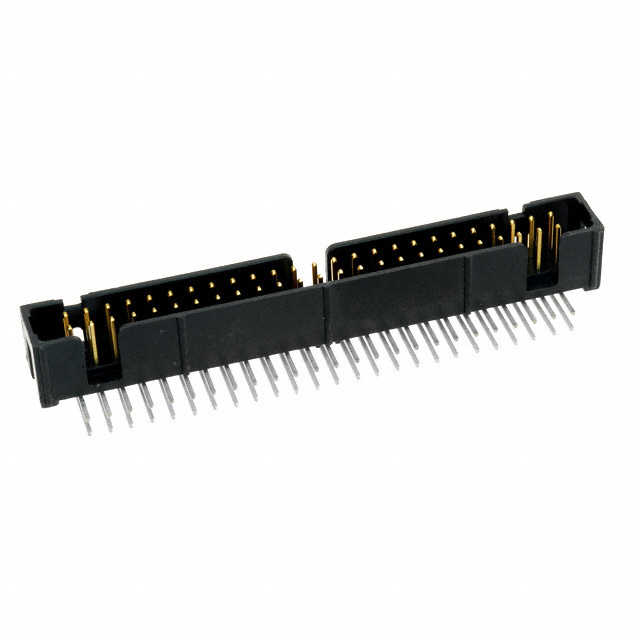

CONN HEADER R/A 50POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
N2550-5002-RB
Active3M
CONN HEADER R/A 50POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | N2550-5002-RB | N2550 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin-Lead, Tin |
| Contact Finish Thickness - Mating | 30 Áin | 15 - 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.38 - 0.76 Ám |
| Contact Finish Thickness - Post | 200 µin | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm | 5.08 µm |
| Contact Length - Post | 2.84 mm | 2.84 - 3.94 mm |
| Contact Length - Post | 0.112 in | 0.112 - 0.155 " |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 1.75 A | 1.75 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Keying Slot | Keying Slot |
| Insulation Color | Black | Black |
| Insulation Height | 0.338 in | 0.338 in |
| Insulation Height | 8.59 mm | 8.59 mm |
| Insulation Height | - | 9.91 mm |
| Insulation Height | - | 0.39 in |
| Insulation Material | Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT) | Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Through Hole, Right Angle |
| Number of Positions | 50 | 50 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
N2550 Series
CONN HEADER VERT 50POS 2.54MM
| Part | Number of Positions | Fastening Type | Insulation Height [z] | Insulation Height [z] | Number of Rows | Contact Material | Features | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Contact Shape | Connector Type | Contact Finish - Mating | Style | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Post | Contact Length - Post | Current Rating (Amps) | Shrouding | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Material Flammability Rating | Termination | Insulation Color | Contact Type | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
50 | Push-Pull | 9.91 mm | 0.39 in | 2 | Copper Alloy | Keying Slot | 0.1 in | 2.54 mm | All | Square | Header | Gold | Board to Board, Cable | 105 ░C | -55 °C | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Tin-Lead | 200 µin | 5.08 µm | Through Hole | 30 Áin | 0.76 Ám | 3.94 mm | 0.155 " | 1.75 A | Shrouded - 4 Wall | 2.54 mm | 0.1 in | UL94 V-0 | Solder | Black | Male Pin | |||
50 | Push-Pull | 2 | Copper Alloy | Keying Slot | 0.1 in | 2.54 mm | All | Square | Header | Gold | Board to Board, Cable | 105 ░C | -55 °C | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Tin | 200 µin | 5.08 µm | Through Hole, Right Angle | 30 Áin | 0.76 Ám | 2.84 mm | 0.112 in | 1.75 A | Shrouded - 4 Wall | 2.54 mm | 0.1 in | UL94 V-0 | Solder | Black | Male Pin | 0.338 in | 8.59 mm | |||
50 | Push-Pull | 9.91 mm | 0.39 in | 2 | Copper Alloy | Keying Slot | 0.1 in | 2.54 mm | All | Square | Header | Gold | Board to Board, Cable | 105 ░C | -55 °C | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Tin | 200 µin | 5.08 µm | Through Hole | 30 Áin | 0.76 Ám | 2.84 mm | 0.112 in | 1.75 A | Shrouded - 4 Wall | 2.54 mm | 0.1 in | UL94 V-0 | Solder | Black | Male Pin | |||
50 | Push-Pull | 9.91 mm | 0.39 in | 2 | Copper Alloy | Keying Slot | 0.1 in | 2.54 mm | All | Square | Header | Gold | Board to Board, Cable | 105 ░C | -55 °C | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Tin-Lead | 200 µin | 5.08 µm | Through Hole | 15 µin | 0.38 µm | 2.84 mm | 0.112 in | 1.75 A | Shrouded - 4 Wall | 2.54 mm | 0.1 in | UL94 V-0 | Solder | Black | Male Pin | |||
50 | Push-Pull | 2 | Copper Alloy | Keying Slot | 0.1 in | 2.54 mm | All | Square | Header | Gold | Board to Board, Cable | 105 ░C | -55 °C | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Tin-Lead | 200 µin | 5.08 µm | Through Hole, Right Angle | 15 µin | 0.38 µm | 2.84 mm | 0.112 in | 1.75 A | Shrouded - 4 Wall | 2.54 mm | 0.1 in | UL94 V-0 | Solder | Black | Male Pin | 0.338 in | 8.59 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.38 | |
| 10 | $ 4.88 | |||
| 224 | $ 4.30 | |||
| 672 | $ 3.66 | |||
| 1120 | $ 3.12 | |||
Description
General part information
N2550 Series
Connector Header Through Hole, Right Angle 50 position 0.100" (2.54mm)
Documents
Technical documentation and resources
