STS521033U112
ActiveEaton - Electronics Division

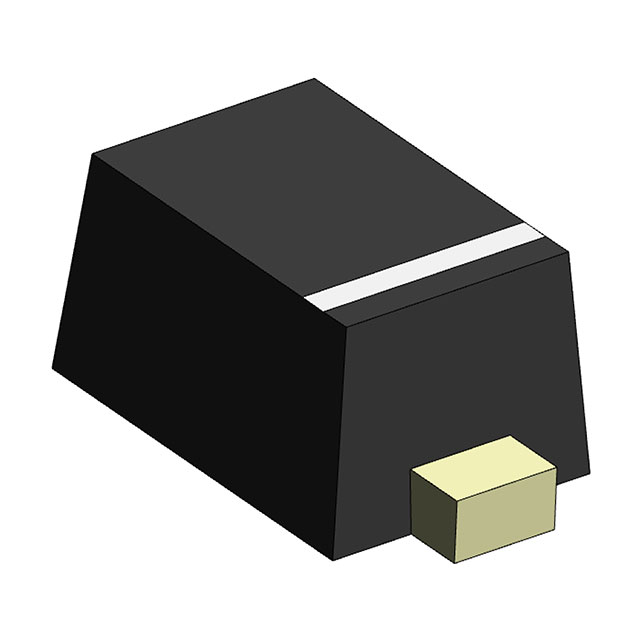

TVS DIODE, UNIDIR, 3.3V, 250W, SOD-523 ROHS COMPLIANT: YES
STS521033U112
ActiveEaton - Electronics Division
TVS DIODE, UNIDIR, 3.3V, 250W, SOD-523 ROHS COMPLIANT: YES
Description
General part information
STS521033U112
15V (Typ) Clamp 15A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523
Technical Specifications
Parameters and characteristics for this part
| Specification | STS521033U112 |
|---|---|
| Applications | General Purpose |
| Capacitance | 110 pF |
| Current - Peak Pulse | 15 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | SOD-523, SC-79 |
| Package Name | SOD-523 |
| Power - Peak Pulse | 250 W |
| Power Line Protection | No |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 4 V |
| Voltage - Clamping (Max) (Typ) | 15 V |
| Voltage - Reverse Standoff (Max) | 3.3 V |
