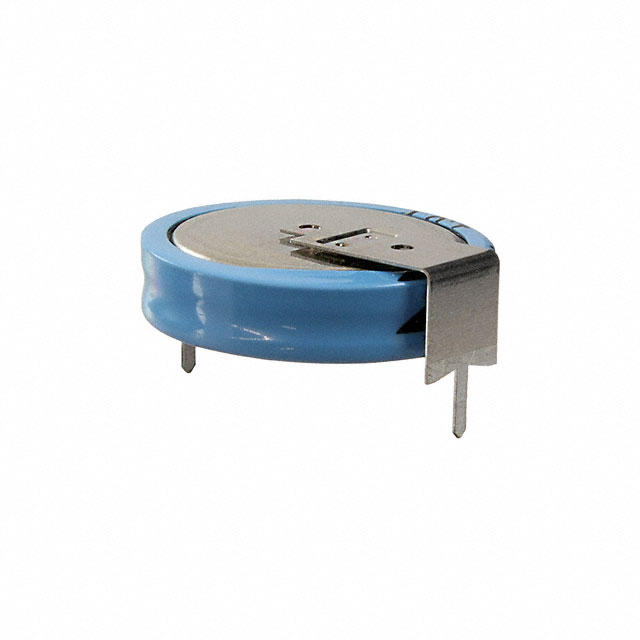

EDS105Z3R6H
ActiveCornell Dubilier Knowles
CAP 1F -20% +80% 3.6V T/H
EDS105Z3R6H
ActiveCornell Dubilier Knowles
CAP 1F -20% +80% 3.6V T/H
Description
General part information
EDS105Z3R6H
1 F (EDLC) Supercapacitor 3.6 V Axial, Can - Horizontal 30Ohm @ 1kHz 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | EDS105Z3R6H |
|---|---|
| Capacitance | 1 F |
| ESR (Equivalent Series Resistance) | 30 Ohm |
| Height - Seated (Max) | 0.276 in |
| Lead Spacing | 0.787 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Horizontal, Axial |
| Size / Dimension Diameter | 0.748 in |
| Termination | PC Pins |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 80 % |
| Voltage - Rated | 3.6 VDC |
