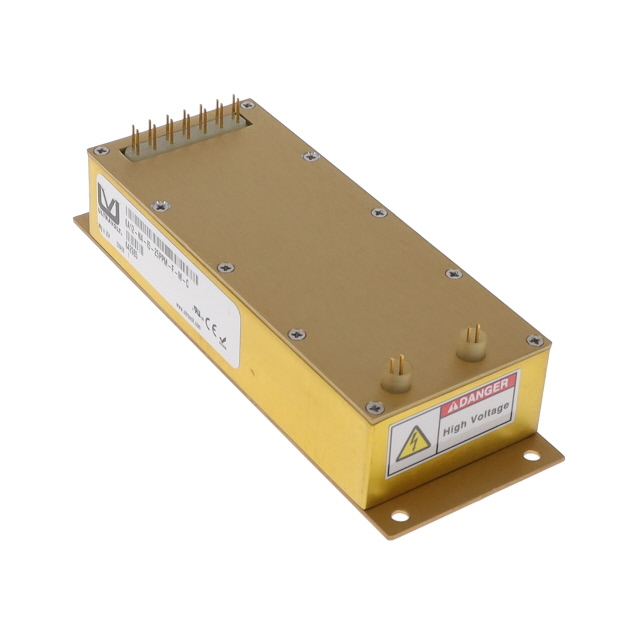

6A12-N4-I5-25PPM-F-M-C
ActiveNON-ISOLATED DC/DC CONVERTERS A-SERIES DC TO HVDC CONVERTER, SINGLE OUTPUT (UNIPOLAR), +12V INPUT, , -6000V DC HVOUT, 4W, THRU-HOLE MOUNT, REGULATED, I5 INTERFACE 0 TO +5 VDC MONITORS/CONTROLS, 25PPM/ C TEMPERATURE COEFFICIENT, RIPPLE REDUCTION FILTER, M
6A12-N4-I5-25PPM-F-M-C
ActiveNON-ISOLATED DC/DC CONVERTERS A-SERIES DC TO HVDC CONVERTER, SINGLE OUTPUT (UNIPOLAR), +12V INPUT, , -6000V DC HVOUT, 4W, THRU-HOLE MOUNT, REGULATED, I5 INTERFACE 0 TO +5 VDC MONITORS/CONTROLS, 25PPM/ C TEMPERATURE COEFFICIENT, RIPPLE REDUCTION FILTER, M
Description
General part information
A Series
Enclosed DC DC Converter 1 Output 0 ~ 6000V 670µA 16V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | 6A12-N4-I5-25PPM-F-M-C |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE |
| Current - Output (Max) | 670 µA |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 45 °C |
| Operating Temperature (Min) | -10 °C |
| Power (Watts) | 4 W |
| Size / Dimension Height | 1 in |
| Size / Dimension Length | 4.75 in |
| Size / Dimension Width | 2 in |
| Type | Enclosed |
| Voltage - Input (Max) | 16 V |
| Voltage - Input (Min) | 11 V |
| Voltage - Isolation | 6 kV |
| Voltage - Output 1 (Max) | 6000 V |
| Voltage - Output 1 (Min) | 0 V |
