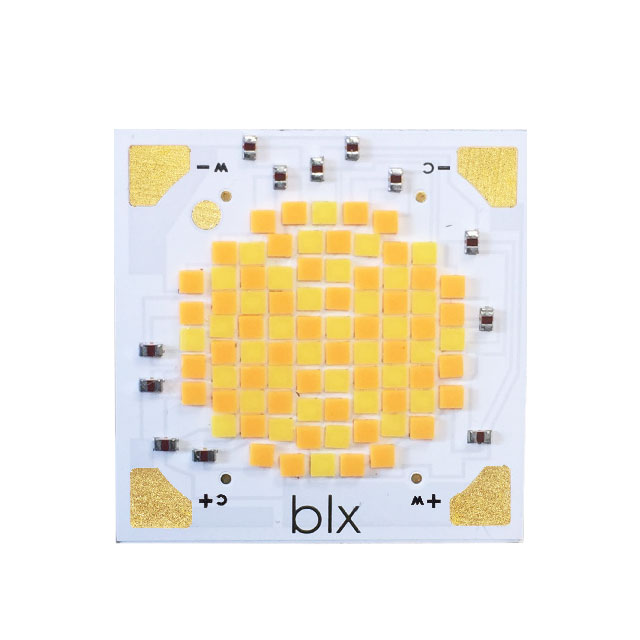

BXRV-TR-2750G-2000-A-15

Obsolete

BRIDGELUX

LED COB VESTA WARM WHT SQU 3850K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRV-TR-2750G-2000-A-15

Obsolete

BRIDGELUX

LED COB VESTA WARM WHT SQU 3850K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BXRV-TR-2750G-2000-A-15

CCT (K)	3850 K
CCT (K) [Max]	5000 K
CCT (K) [Min]	2700 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	1.4 A
Height [z]	1.4 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	13 mm
Lumens/Watt @ Current - Test	103 lm/W
Luminous Flux @ Current/Temperature	2600 lm
Size / Dimension [x]	18.8 mm
Size / Dimension [y]	18.8 mm
Type	Chip On Board (COB)
Viewing Angle	130 °
Voltage - Forward (Vf) (Typ)	36.3 V

BXRV-TR-27 Series

Part	Lens Type	Current - Max [Max]	Configuration	Size / Dimension [y]	Size / Dimension [x]	Color	Viewing Angle	Luminous Flux @ Current/Temperature	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Current - Test	Height [z]	Light Emitting Surface (LES) [diameter]	CCT (K)	CCT (K) [Max]	CCT (K) [Min]	Lumens/Watt @ Current - Test	Type	CCT (K)	Features	Size / Dimension [diameter]
BRIDGELUX BXRV-TR-2765G-40A0-A-26	Flat	1.4 A	Square	24 mm	24 mm	White Cool White Warm	130 °	4026 lm	90	35.3 V	900 mA	1.65 mm	19.7 mm	4600 K	6500 K	2700 K	127 lm/W	Chip On Board (COB)
BRIDGELUX BXRV-TR-2765G-65A0-A-25	Flat	1.4 A	Square	28 mm	28 mm	White Cool White Warm	130 °	6106 lm	90	53 V	900 mA	1.65 mm	23.1 mm	4600 K	6500 K	2700 K	128 lm/W	Chip On Board (COB)
BRIDGELUX BXRV-TR-2765G-65A0-A-26	Flat	1.4 A	Square	28 mm	28 mm	White Cool White Warm	130 °	6106 lm	90	53 V	900 mA	1.65 mm	23.1 mm	4600 K	6500 K	2700 K	128 lm/W	Chip On Board (COB)
BRIDGELUX BXRV-TR-2750G-1KA0-A-25	Flat	1.8 A	Square	32.05 mm	32.05 mm	White Cool White Warm	130 °	6878 lm	90	52.4 V	1.05 A	1.65 mm	29.6 mm	3850 K	5000 K	2700 K	125 lm/W	Chip On Board (COB)
BRIDGELUX BXRV-TR-2765G-10A0-A-23	Flat	700 mA	Square	15.9 mm	15.9 mm	White Cool White Warm	130 °	990 lm 1177 lm	92	17.6 V 18 V	500 mA	1.65 mm	10 mm	4600 K	6500 K	2700 K	111 lm/W 128 lm/W	Chip On Board (COB)	3-Step MacAdam Ellipse
BRIDGELUX BXRV-TR-2765G-20A0-A-23	Flat	700 mA	Square	18.8 mm	18.8 mm	White Cool White Warm	130 °	2312 lm	90	35.9 V	500 mA	1.65 mm	14.25 mm	4600 K	6500 K	2700 K	129 lm/W	Chip On Board (COB)	3-Step MacAdam Ellipse
BRIDGELUX BXRV-TR-2765G-10A0-B-23	Flat	480 mA	Square	15.9 mm	15.9 mm	White Cool White Warm	130 °	1190 lm	90	36 V	250 mA	1.65 mm	10 mm	2700 K 6500 K			137 lm/W	Chip On Board (COB)
BRIDGELUX BXRV-TR-2750G-06A0-B-23	Flat	200 mA	Square	12.5 mm	12.5 mm	White Cool White Warm	130 °		90	36 V	150 mA	2 mm	6.8 mm	2700 K 5000 K				Chip On Board (COB)
BRIDGELUX BXRV-TR-2750G-10A0-A-23-S2	Flat	700 mA	Round			White Cool White Warm	130 °	891 lm 1038 lm	90		500 mA	3.8 mm	10.3 mm	2700 K 5000 K			111 lm/W 126 lm/W	Chip On Board (COB)		With Holder	36.2 mm
BRIDGELUX BXRV-TR-2750G-10A0-B-23	Flat	480 mA	Square	15.9 mm	15.9 mm	White Cool White Warm	130 °		90	34.8 V	250 mA	1.65 mm	10 mm	2700 K 5000 K			136 lm/W	Chip On Board (COB)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BXRV-TR-27 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Vesta™ White, Warm Square
