20HV11B102PN

Active

KEMET

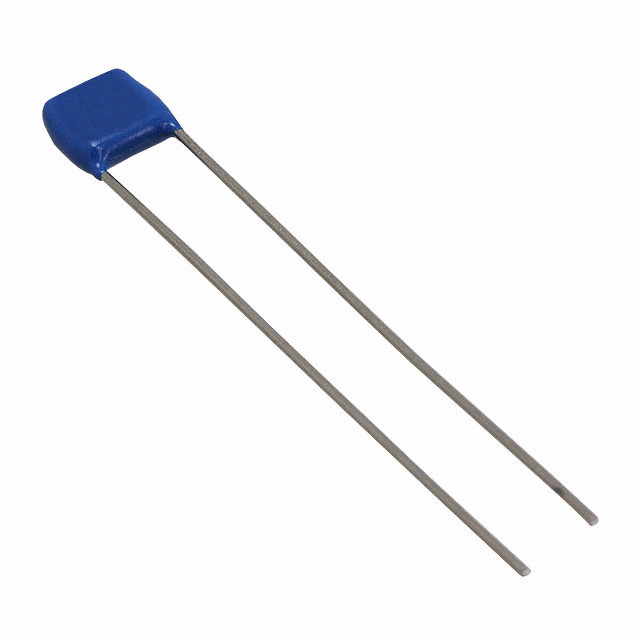

CAP CER 1000PF 2KV X7R RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP CER 1000PF 2KV X7R RADIAL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	20HV11B102PN	20HV11B Series

Applications	Downhole	Downhole
Capacitance	0.001 µF	0.001 µF
Features	High Voltage, High Temperature	High Voltage, High Temperature
Height - Seated (Max) [Max]	0.3 in	0.3 in
Height - Seated (Max) [Max]	7.62 mm	7.62 mm
Lead Spacing	5.08 mm	5.08 mm
Lead Spacing	0.2 in	0.2 in
Lead Style	Straight	Straight
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Radial	Radial
Size / Dimension [x]	0.32 in, 8.13 mm	0.32 - 8.13 in
Size / Dimension [y]	6.35 mm	6.35 mm
Temperature Coefficient	X7R	X7R
Tolerance	-	20 %
Tolerance [Max]	100 %	100 %
Tolerance [Min]	0 %	0 %
Voltage - Rated	2 kV	2 kV
Voltage - Rated	2000 V	2000 V

CAP CER 1000PF 2KV X7R RADIAL

Part	Package / Case	Applications	Size / Dimension [y]	Size / Dimension [x]	Features	Capacitance	Lead Style	Tolerance [Max]	Tolerance [Min]	Mounting Type	Lead Spacing	Lead Spacing	Voltage - Rated	Voltage - Rated	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance
KEMET 20HV11B102PN	Radial	Downhole	6.35 mm	0.32 in, 8.13 mm	High Temperature, High Voltage	0.001 µF	Straight	100 %	0 %	Through Hole	5.08 mm	0.2 in	2 kV	2000 V	X7R	-55 °C	200 °C	0.3 in	7.62 mm
KEMET 20HV11B102MN	Radial	Downhole	6.35 mm	0.32 in, 8.13 mm	High Temperature, High Voltage	0.001 µF	Straight			Through Hole	5.08 mm	0.2 in	2 kV	2000 V	X7R	-55 °C	200 °C	0.3 in	7.62 mm	20 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1000 pF 0%, +100% 2000V (2kV) Ceramic Capacitor X7R Radial
