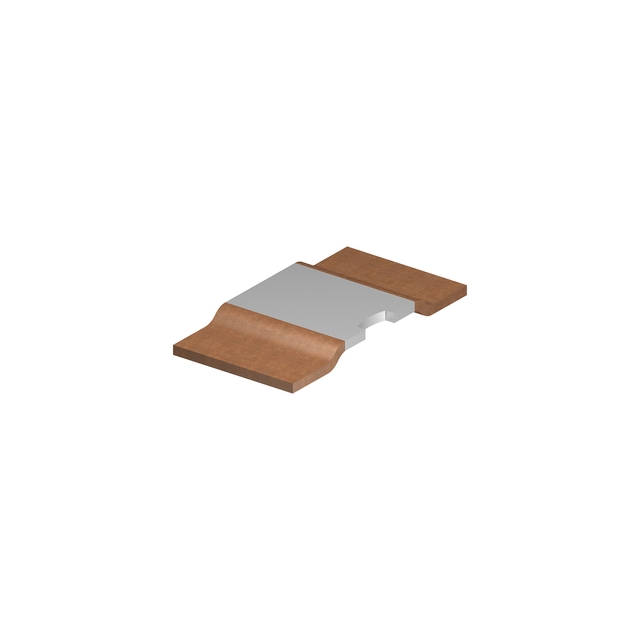

Specification	WSLT39211L000GEA

Composition	Metal Element
Features	Moisture Resistant, Anti-Sulfur, Current Sense, Automotive AEC-Q200, Pulse Withstanding
Height - Seated (Max)	0.02 in
Number of Terminations	2
Operating Temperature (Max)	275 °C
Operating Temperature (Min)	-65 °C
Package / Case	Nonstandard
Package Name	3921
Power (Watts)	3 W
Ratings	AEC-Q200
Resistance	1 mOhms
Size / Dimension Length	0.394 in
Size / Dimension Width	0.205 in
Temperature Coefficient	75 ppm/¯C
Tolerance	2 %
