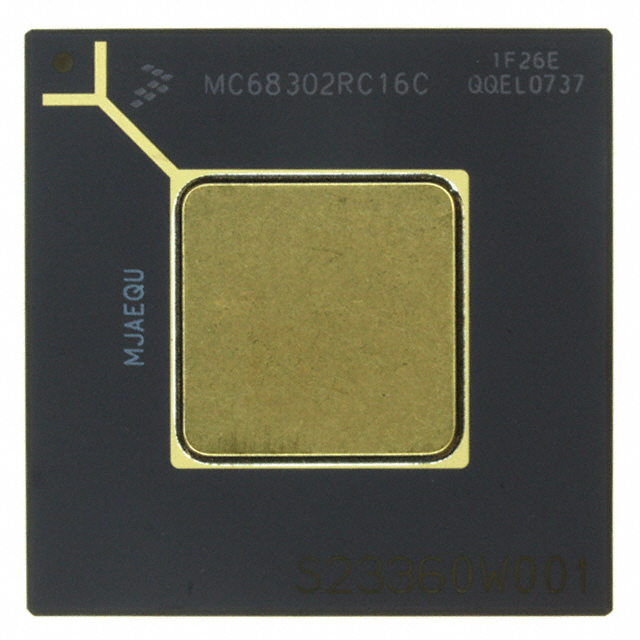

Specification	MC68302RC16C

Additional Interfaces	GCI, SCPI, NMSI, IDL, ISDN, PCM
Bus Width (Options)	16-Bit, 8-Bit
Co-Processors/DSP	Communications, RISC CPM
Core Processor	M68000
Graphics Acceleration	No
Mounting Type	Through Hole
Number of Cores	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	0 °C
Package / Case	132-BPGA Exposed Pad
Package Length	34.5 mm
Package Name	132-PGA
Package Width	34.5 mm
RAM Controllers	DRAM
Speed	16 MHz
Voltage - I/O	5 V

MC683 Series

Part	Co-Processors/DSP	Operating Temperature (Min)	Operating Temperature (Max)	Core Processor	Bus Width	Number of Cores	RAM Controllers	Mounting Type	Voltage - I/O	Speed	Graphics Acceleration	Package Name	Package Width	Package Length	Ethernet Speed	Ethernet Ports	Additional Interfaces	Package / Case	Bus Width (Options)
NXP USA Inc. MC68360AI25VL	Communications CPM	0 °C	70 °C	CPU32+	32 Bit	1 Core	DRAM	Surface Mount	3.3 V	25 MHz	No	240-FQFP	32 mm	32 mm	10 Mbps	1	SCC SMC SPI	240-BFQFP
NXP USA Inc. MC68302CEH16C	Communications RISC CPM	-40 °C	85 °C	M68000		1	DRAM	Surface Mount	5 V	16 MHz	No	132-PQFP	46 mm	46 mm			GCI IDL ISDN NMSI PCM SCPI	132-BQFP Bumpered	16-Bit 8-Bit
NXP USA Inc. MC68302CEH20C	Communications RISC CPM	-40 °C	85 °C	M68000		1	DRAM	Surface Mount	5 V	20 MHz	No	132-PQFP	46 mm	46 mm			GCI IDL ISDN NMSI PCM SCPI	132-BQFP Bumpered	16-Bit 8-Bit
NXP USA Inc. MC68302PV25C	Communications RISC CPM	0 °C	70 °C	M68000		1	DRAM	Surface Mount	5 V	25 MHz	No	144-LQFP	20 mm	20 mm			GCI IDL ISDN NMSI PCM SCPI	144-LQFP	16-Bit 8-Bit
NXP USA Inc. MC68302RC20C	Communications RISC CPM	0 °C	70 °C	M68000		1	DRAM	Through Hole	5 V	20 MHz	No	132-PGA	34.5 mm	34.5 mm			GCI IDL ISDN NMSI PCM SCPI	132-BPGA Exposed Pad	16-Bit 8-Bit
NXP USA Inc. MC68340AG16VE		0 °C	70 °C	CPU32	32 Bit	1 Core	DRAM	Surface Mount	3.3 V	16 MHz	No	144-LQFP	20 mm	20 mm			USART	144-LQFP
NXP USA Inc. MC68360CZQ25L	Communications CPM	-40 °C	85 °C	CPU32+	32 Bit	1 Core	DRAM	Surface Mount	5 V	25 MHz	No	357-PBGA	25 mm	25 mm	10 Mbps	1	SCC SMC SPI	357-BBGA
NXP USA Inc. MC68302AG33C	Communications RISC CPM	0 °C	70 °C	M68000		1	DRAM	Surface Mount	5 V	33 MHz	No	144-LQFP	20 mm	20 mm			GCI IDL ISDN NMSI PCM SCPI	144-LQFP	16-Bit 8-Bit
NXP USA Inc. MC68302PV33C	Communications RISC CPM	0 °C	70 °C	M68000		1	DRAM	Surface Mount	5 V	33 MHz	No	144-LQFP	20 mm	20 mm			GCI IDL ISDN NMSI PCM SCPI	144-LQFP	16-Bit 8-Bit
NXP USA Inc. MC68340PV16E		0 °C	70 °C	CPU32	32 Bit	1 Core	DRAM	Surface Mount	5 V	16 MHz	No	144-LQFP	20 mm	20 mm			USART	144-LQFP
