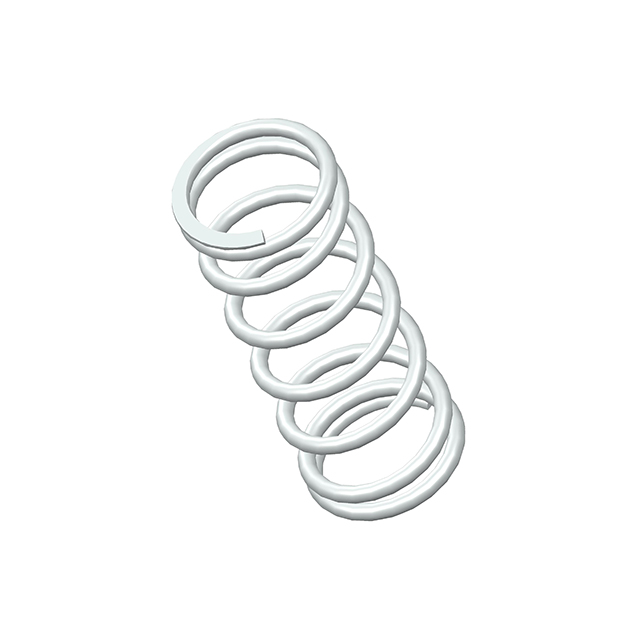

71109SCS
ActiveCentury Spring Corp
COMP O= .360,L= .94,W= .038
71109SCS
ActiveCentury Spring Corp
COMP O= .360,L= .94,W= .038
Description
General part information
71109SCS
COMP O= .360,L= .94,W= .038
Technical Specifications
Parameters and characteristics for this part
| Specification | 71109SCS |
|---|---|
| Diameter - Inside | 0.284 in |
| Diameter - Outside | 0.36 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 0.94 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 13 lbs/in |
| Type | Compression |
| Wire Diameter | 0.038 in |
