FMCA3098-50CM
ActiveFairview Microwave
CBL ASSY MMCXPLUG-MMCXPLUG 19.68
FMCA3098-50CM
ActiveFairview Microwave
CBL ASSY MMCXPLUG-MMCXPLUG 19.68
Description
General part information
FMCA3098-50CM

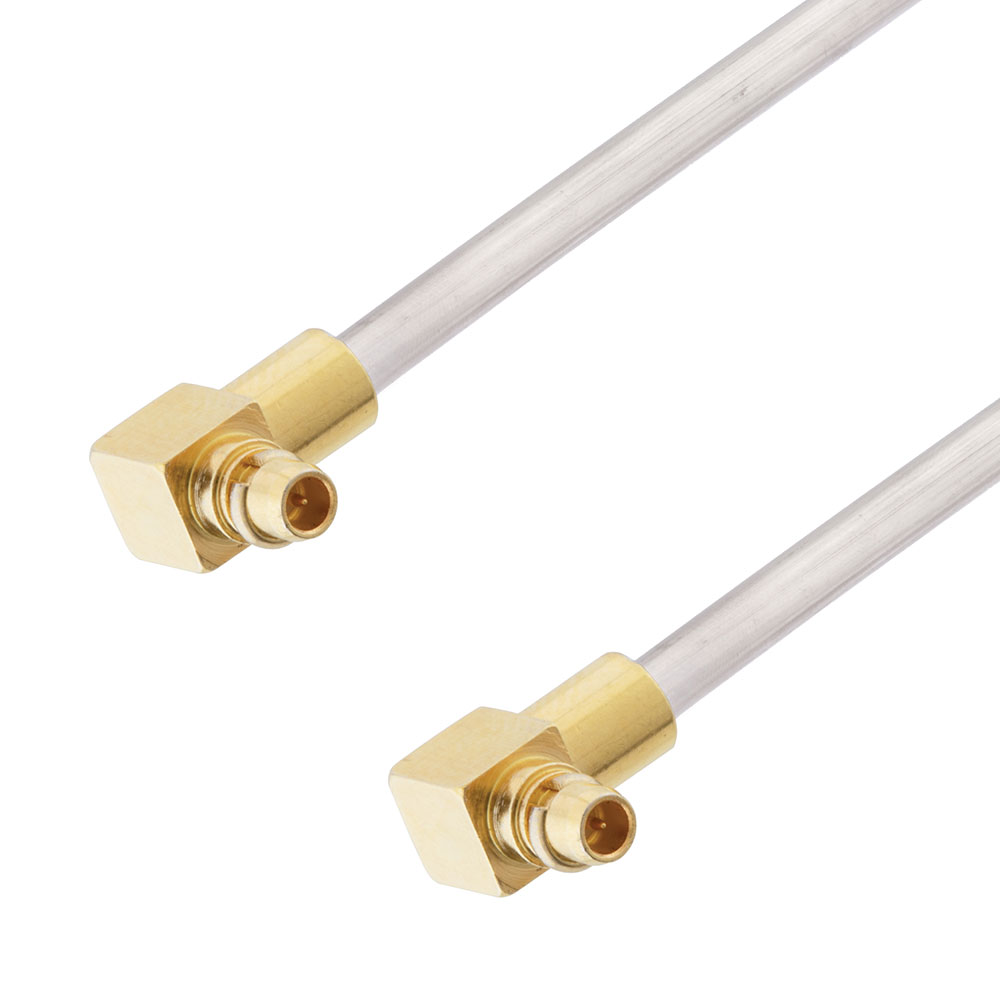

Cable Assembly Coaxial MMCX to MMCX Hand Formable .047 19.69" (500.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA3098-50CM |
|---|---|
| 1st Connector | MMCX Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | MMCX Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.047 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 19.69 in |
| Overall Impedance | 50 Ohms |
| Style | MMCX |
