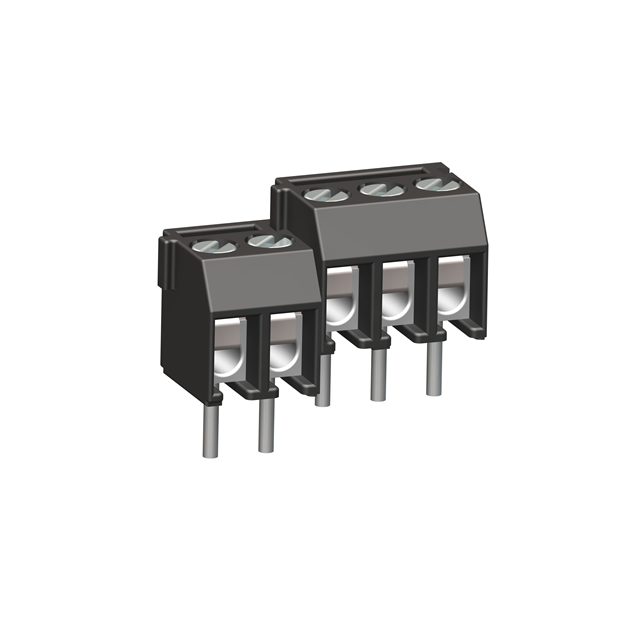

930-T-DS/03

Active

WECO Electrical Connectors Inc.

TERMINAL BLOCK CONNECTOR PCB SCR

Search across all available documentation for this part.

Active

WECO Electrical Connectors Inc.

TERMINAL BLOCK CONNECTOR PCB SCR

Technical Specifications

Parameters and characteristics for this part

TERMINAL BLOCK CONNECTOR PCB SCR

Part	Screw Thread	Color	Pitch [x]	Pitch [x]	Housing Material	Torque - Screw	Torque - Screw	Clamp Material - Plating	Screw Material - Plating	Voltage	Current	Mounting Type	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Wire Termination	Contact Material - Plating	Wire Gauge [Max]	Wire Gauge [Min]	Positions Per Level	Mating Orientation	Features
WECO Electrical Connectors Inc. 930-T-DS/03	M2	Gray	3.5 mm	0.138 in	Polyamide (PA), Nylon	0.23 Nm	2 Lb-In	Nickel Plated	Steel, Zinc Plated	300 V	10 A	Through Hole	1	-40 °C	105 ░C	Screw - Leaf Spring, Wire Guard	Copper Alloy - Tin Plated	26 AWG	16 AWG	3	Horizontal with Board	Interlocking (Side)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Through Hole
