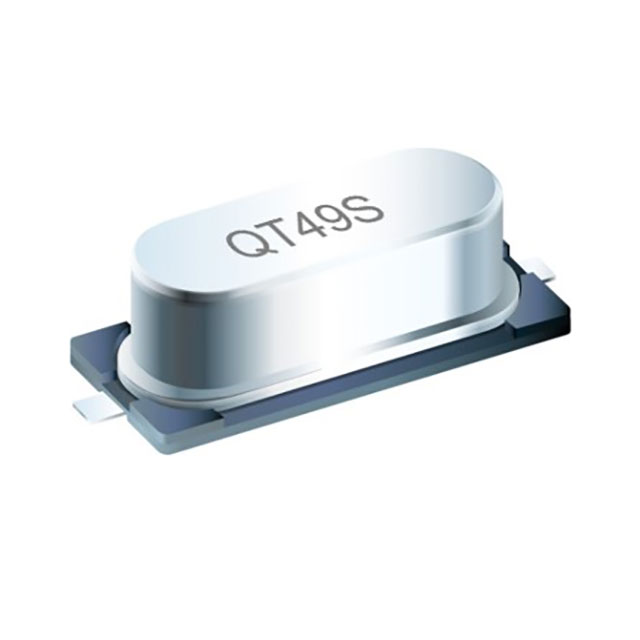

QT49S

QT49S-14.31818MAGE-T

Active
QST

HC49 SMD , +/-30PPM , +/-50PPM (

Find alt
QT49S

QT49S-14.31818MAGE-T

Active
QST

HC49 SMD , +/-30PPM , +/-50PPM (

Find alt

Description

General part information

QT49S-14.31818MAGE-T

14.31818 MHz ±30ppm Crystal 12pF 30 Ohms HC-49/US

Technical Specifications

Parameters and characteristics for this part

SpecificationQT49S-14.31818MAGE-T
ESR (Equivalent Series Resistance)30 Ohm
Frequency14.31818 MHz
Frequency Stability50 ppm
Frequency Tolerance30 ppm
Height - Seated (Max)0.161 in
Load Capacitance12 pF
Mounting TypeSurface Mount
Operating ModeFundamental
Package / CaseHC-49/US
Package NameHC-49S
Size / Dimension Length0.449 in
Size / Dimension Width0.189 in
TypeMHz Crystal
