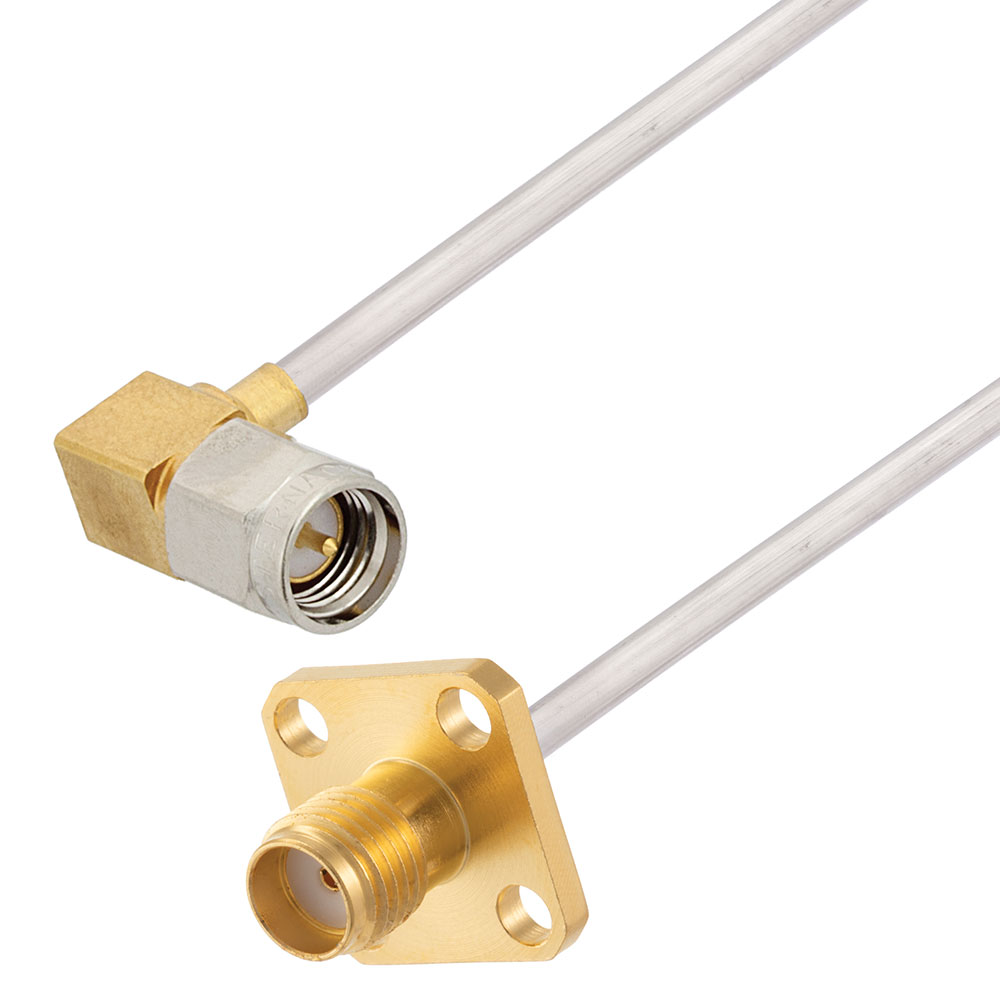

Specification	FMCA3009-24

1st Connector	SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	Right Angle, SMA Plug
2nd Connector Mounting Feature	Flange
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG
Cable Type Size	405
Connector Impedance	50 Ohms
Frequency - Max	12.4 GHz
Length	24 in
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Overall Impedance	50 Ohms
Style	SMA
