392C250K
ObsoleteHoneywell Sensing and Productivity Solutions
POT 50K OHM 1/2W PLASTIC LINEAR
392C250K
ObsoleteHoneywell Sensing and Productivity Solutions
POT 50K OHM 1/2W PLASTIC LINEAR
Description
General part information
392C250K

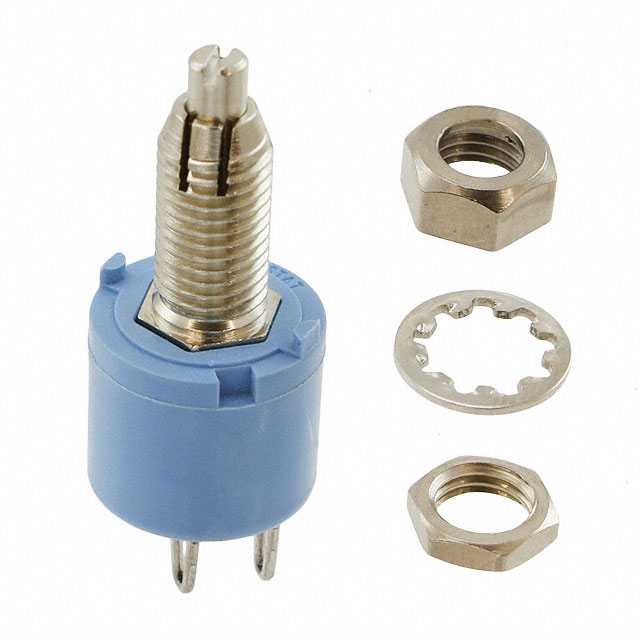

50k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.5W, 1/2W PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | 392C250K |
|---|---|
| Actuator Diameter | 3.175 mm |
| Actuator Length | 0.625 in |
| Actuator Type | Slotted |
| Adjustment Type | User Defined |
| Built in Switch | None |
| Bushing Thread | 1/4-32 |
| Mounting Type | Panel Mount |
| Number of Gangs | 1 |
| Number of Turns | 1 turns |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 50 kOhm |
| Resistive Material | Conductive Plastic |
| Rotation | 295 ° |
| Size - Body Diameter | 0.51 in |
| Size - Body Shape | Round |
| Taper | Linear |
| Termination Style | PC Pins |
| Tolerance | 10 % |
