Description
General part information

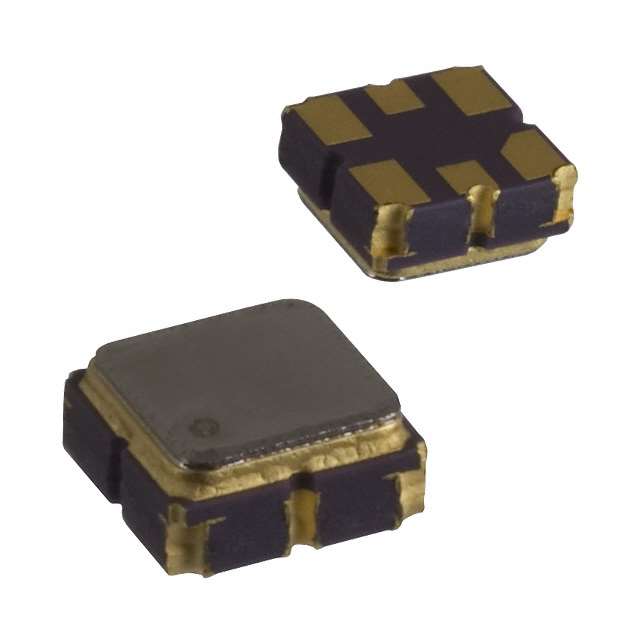

ECS-DSF947.5B-21-TR
947.5MHz Frequency Cell Phone RF SAW Filter (Surface Acoustic Wave) 3.3dB Bandwidth 6-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ECS-DSF947.5B-21-TR |
|---|---|
| Applications | Cell Phone |
| Frequency - Center | 947.5 MHz |
| Height (Max) | 0.059 in |
| Insertion Loss | 3.3 dB |
| Mounting Type | Surface Mount |
| Package / Case | No Lead, 6-SMD |
| Size / Dimension Length | 0.118 in |
| Size / Dimension Width | 0.118 in |
