FMCN1731
ObsoleteFairview Microwave
CONN JACK CLAMP 1.85MM
FMCN1731
ObsoleteFairview Microwave
CONN JACK CLAMP 1.85MM
Description
General part information
FMCN1731

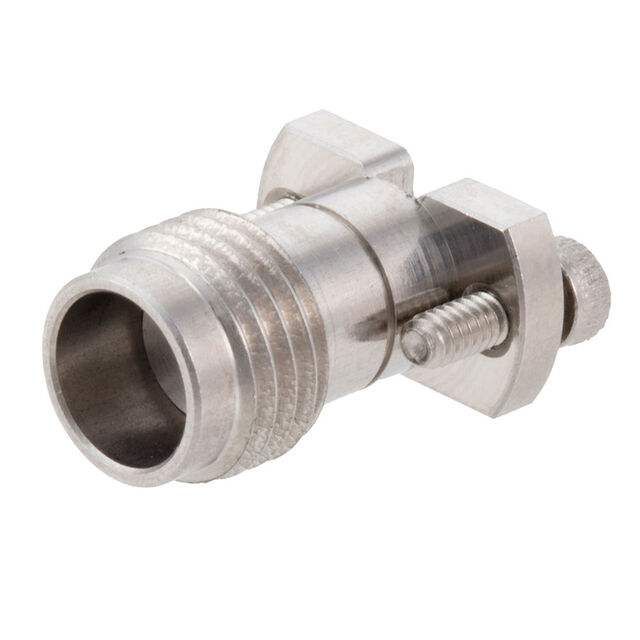

1.85mm Connector Jack, Female Socket 50 Ohms Panel Mount Clamp
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCN1731 |
|---|---|
| Body Material | Stainless Steel |
| Connector Plug Diameter | 1.85 mm |
| Connector Type | Jack, Female Socket |
| Contact Termination | Clamp |
| Fastening Type | Threaded |
| Features | Mounting Hardware |
| Frequency - Max | 67 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Screw |
