BQ1001-9RG

Active

Bel Power Solutions

DC/DC CONVERTER 5.1V 102W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC/DC CONVERTER 5.1V 102W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

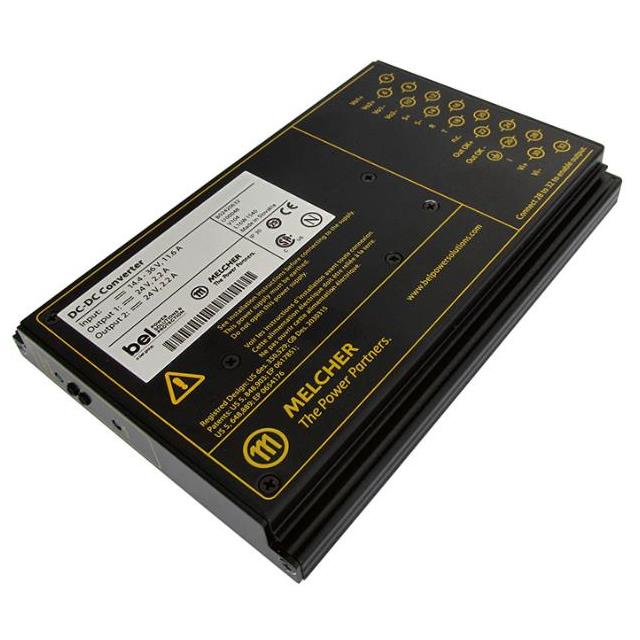

Enclosed, Conformal Coated DC DC Converter 1 Output 5.1V 20A 36V Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	BQ1001-9RG	BQ1001 Series

Applications	Railway, ITE (Commercial)	Railway, ITE (Commercial)
Approval Agency	EAC, CSAus, NEMKO, CE	EN, CSA, UL, TUV, CE, IEC, EAC, CSAus, NEMKO, cCSAus
Current - Output (Max) [Max]	20 A	20 A
Efficiency	86 %	86 %
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	71 °C	71 °C
Operating Temperature [Min]	-40 °C	-40 - -25 °C
Power (Watts)	102 W	102 W
Size / Dimension [x]	6.46 "	6.46 - 6.73 in
Size / Dimension [x]	164 mm	164 - 171 mm
Size / Dimension [y]	4.37 "	4.37 "
Size / Dimension [y]	111 mm	111 mm
Size / Dimension [z]	0.78 in	0.78 in
Size / Dimension [z]	19.8 mm	19.8 mm
Type	Conformal Coated, Enclosed	Conformal Coated, Enclosed
Voltage - Input (Max) [Max]	36 V	36 V
Voltage - Input (Min) [Min]	14.4 V	14.4 V
Voltage - Isolation	2.1 kV	2.1 kV
Voltage - Output 1	5.1 V	5.1 V

DC/DC CONVERTER 5.1V 102W

Part	Current - Output (Max) [Max]	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Mounting Type	Type	Voltage - Input (Min) [Min]	Applications	Number of Outputs	Approval Agency	Voltage - Isolation
Bel Power Solutions BQ1001-9R	20 A	102 W	36 V	5.1 V	-40 °C	71 °C	86 %	0.78 in	6.73 in	111 mm	171 mm	19.8 mm	4.37 "	Chassis Mount	Conformal Coated, Enclosed	14.4 V	ITE (Commercial), Railway	1	CE, CSA, EN, IEC, TUV, UL
Bel Power Solutions BQ1001-9RG	20 A	102 W	36 V	5.1 V	-40 °C	71 °C	86 %	0.78 in	6.46 "	111 mm	164 mm	19.8 mm	4.37 "	Chassis Mount	Conformal Coated, Enclosed	14.4 V	ITE (Commercial), Railway	1	CE, CSAus, EAC, NEMKO	2.1 kV
Bel Power Solutions BQ1001-7R	20 A	102 W	36 V	5.1 V	-25 °C	71 °C	86 %	0.78 in	6.46 "	111 mm	164 mm	19.8 mm	4.37 "	Chassis Mount	Conformal Coated, Enclosed	14.4 V	ITE (Commercial), Railway	1	cCSAus, CE, TUV
